Conn Wire to Board HDR 4POS 2.54mm Solder RA Thru-Hole
针座 通孔,直角 4 位置 0.100"(2.54mm)
得捷:
CONN HEADER R/A 4POS 2.54MM
艾睿:

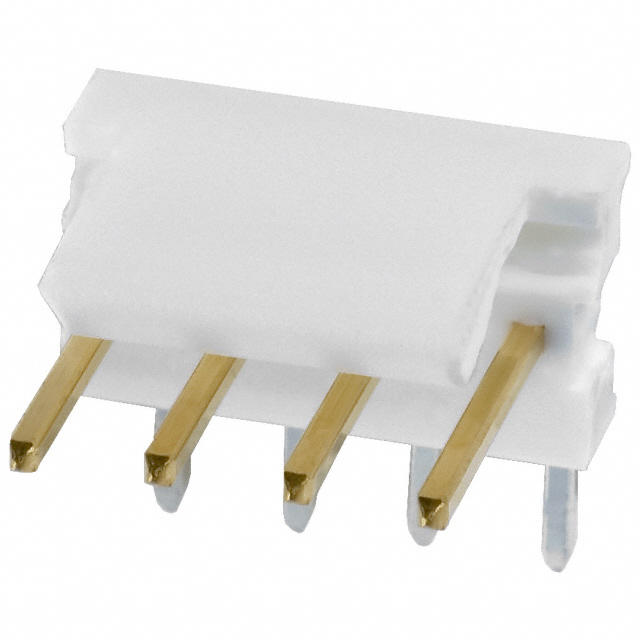

Use this wire to board 641216-4 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. 641216-4 is housed in white polyester. This product is 10.16 mm long, 5.72 mm tall and 11.05 mm deep. It uses the solder termination method.
安富利:
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole
MASTER:
MTA-100 HDR ASSY, FRICTION LOCK, NOTCHED, .025 SQUARE
Electro Sonic:
04P MTA100 HDR ASSY FL/RA 30AU
触点数 4
极性 Male
触点电镀 Tin, Gold
额定电压AC 250 V
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 4
安装角度 90.0 °
带凸肩 No
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 6 MΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 10.2 mm
宽度 7.87 mm
高度 5.72 mm
引脚间距 2.54 mm
外壳颜色 White
颜色 Natural
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, 通用
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
