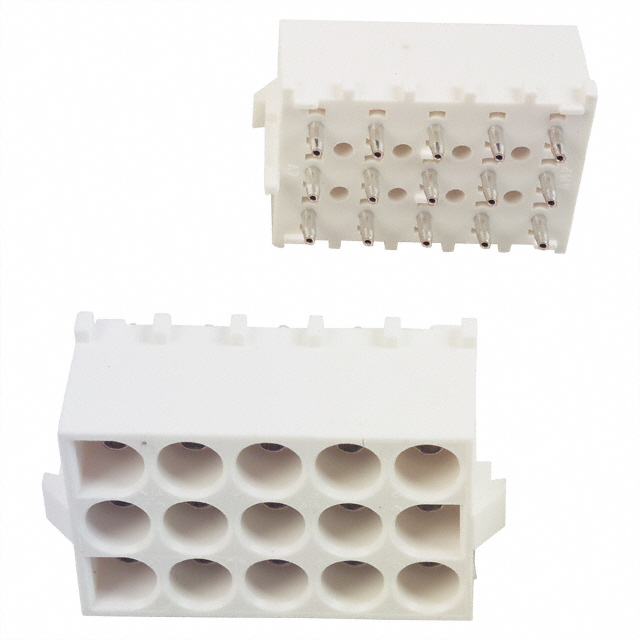

Conn Wire to Board HDR 15POS 6.35mm Solder ST Thru-Hole
* Pins and sockets can be intermixed in the same housing * Positive polarization * Rear cavity identification * Contacts completely enclosed in housings * Low contact mating force * Harness to PC Board capability
得捷:
CONN HEADER VERT 15POS 6.35MM
贸泽:
Pin & Socket Connectors 15P UMNL PIN HDR ASSY POL 94VO
安富利:
Conn Wire to Board HDR 15 POS 6.35mm Solder ST Thru-Hole
Online Components:
Conn Wire to Board HDR 15 POS 6.35mm Solder ST Thru-Hole
Electro Sonic:
Conn Wire to Board HDR 15 POS 6.35mm Solder ST Thru-Hole
触点数 15
触点电镀 Gold, Tin
额定电流 19.0 A
排数 3
电路数 15
易燃性等级 UL 94 V-0
针脚数 15
安装角度 180 °
额定电流Max 19A/触头
额定电压Max 600 VAC
安装方式 Through Hole
引脚间距 6.35 mm
长度 33.0 mm
宽度 20.3 mm
高度 14.0 mm
引脚间距 6.35 mm
颜色 White
触点材质 Phosphor Bronze
外壳材质 Nylon
产品生命周期 Obsolete
包装方式 Bulk
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
