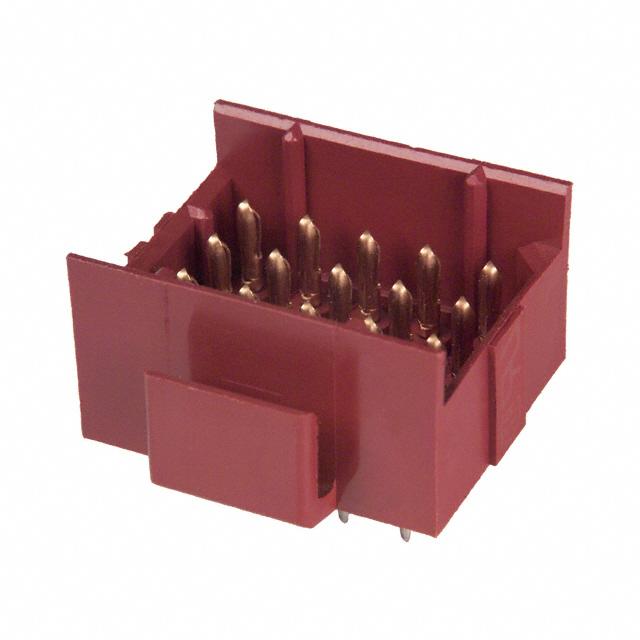

640504-2

集管和线壳 PIN HEADER 20P vertical

针座 通孔 20 位置 0.165"（4.20mm）

得捷:
CONN HEADER VERT 20POS 4.2MM

贸泽:
集管和线壳 PIN HEADER 20P vertical

艾睿:
Electrical connections will be kept strong and reliable with this 640504-2 USB connector from TE Connectivity. Its pitch is 4.19 mm. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. It has a receptacle type gender. This is a 5-row connector. This RCP connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. This device has a maximum current rating of 9 A/contact. 640504-2 is housed in nylon. This product is 27.55 mm long and 25.14 mm. This harting connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

Jameco:
Connector Power Header 20 Position 4.19mm Solder Straight Through Hole 20 Terminal 1 Port

安富利:
Conn Rectangular PIN 20 POS 4.19mm Solder ST Thru-Hole Bag

Verical:
Conn Rectangular PIN 20 POS 4.19mm Solder ST Thru-Hole

Powell:
.165" Centerline, 250 V, 9 A max.

Electro Sonic:
.165" Centerline, 250 V, 9 A max.
