BI TECHNOLOGIES / TT ELECTRONICS 6187R10KL1.0 旋转电位器, 导电塑料, 6180系列, 10 kohm, 线性, 1 转, 1 W, 面板

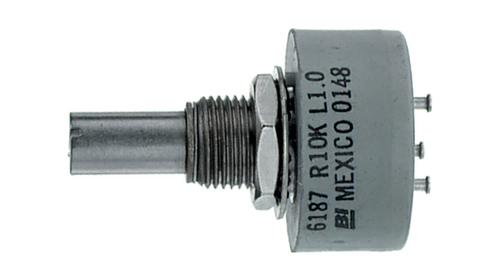

The is a 10kR 1W 1-turn 1-gang panel-mounting Precision Rotary Potentiometer with screwdriver slot adjustment and linear track taper. The 6180 series potentiometer has an essentially infinite resolution and ±10% resistance tolerance.
额定电压DC 400 V
绝缘电阻 1.00 GΩ
容差 ±10 %
额定功率 1 W
电阻 10 KΩ
阻值偏差 ±10 %
安装方式 Solder Lug
封装 Round - 0.875" Dia x 0.455" H 22.23mm x 11.56mm
高度 36.42 mm
封装 Round - 0.875" Dia x 0.455" H 22.23mm x 11.56mm
工作温度 -65℃ ~ 125℃
温度系数 -400 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
