BI TECHNOLOGIES / TT ELECTRONICS 6187R5KL1.0 旋转电位器, 导电塑料, 6180系列, 5 kohm, 线性, 1 转, 1 W, 面板

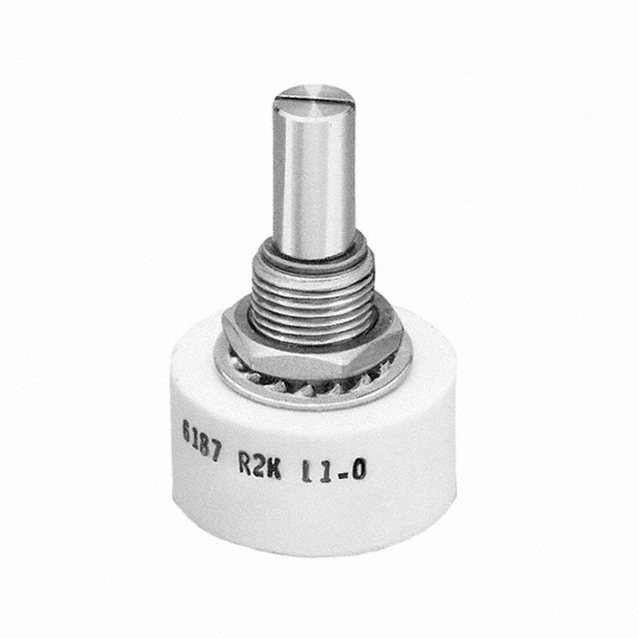

The is a 5kR 1W 1-turn 1-gang panel-mounting Precision Rotary Potentiometer with screwdriver slot adjustment and linear track taper. The 6180 series potentiometer has an essentially infinite resolution and ±10% resistance tolerance.
- .
- 5-million Shaft revolutions rotational life
- .
- IP50/IP66 Protection rating
- .
- -65 to 125°C Operating temperature range
额定电压DC 400 V
绝缘电阻 1.00 GΩ
容差 ±10 %
额定功率 1 W
电阻 5 KΩ
阻值偏差 ±10 %
安装方式 Solder Lug
封装 Round - 0.875" Dia x 0.455" H 22.23mm x 11.56mm
高度 36.42 mm
封装 Round - 0.875" Dia x 0.455" H 22.23mm x 11.56mm
工作温度 -65℃ ~ 125℃
温度系数 -400 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
6187R5KL1.0 TT Electronics/BI | 当前型号 | 当前型号 |
6187R5KL1.0LF TT Electronics/BI | 完全替代 | 6187R5KL1.0和6187R5KL1.0LF的区别 |
