6100.4310

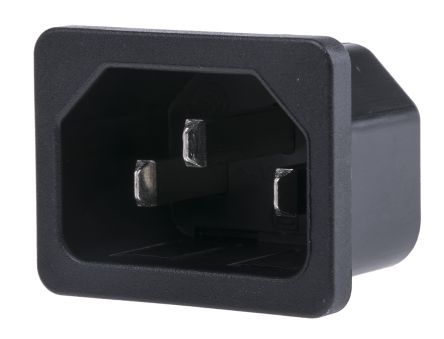

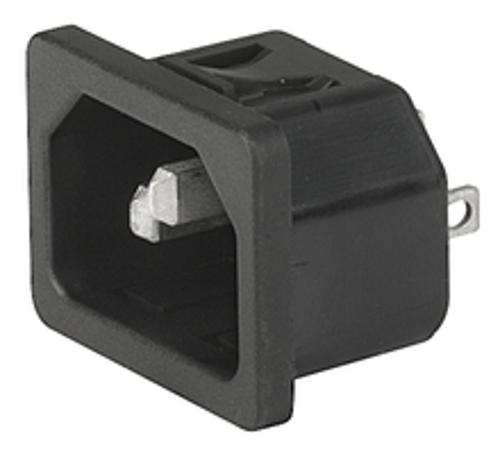

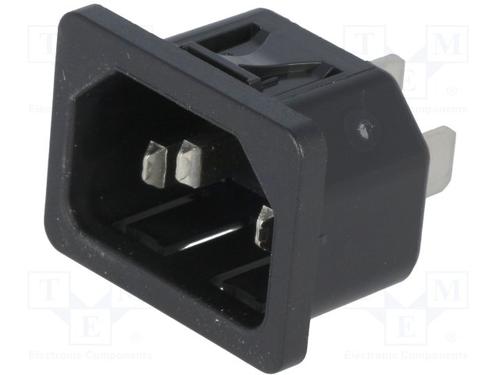

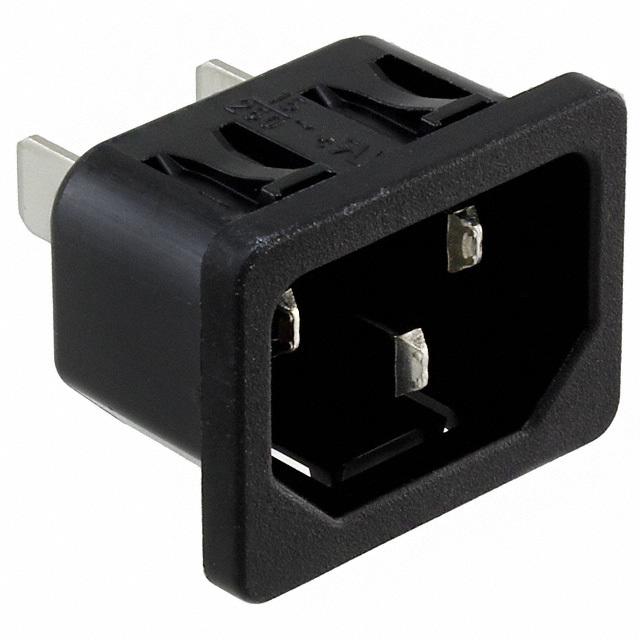

SCHURTER  6100.4310  电源入口插座, IEC, C14, 6100, 10A

EEC 22 面板夹式公插座，6100-4 系列

这些面板安装公插座可使用塑料鱼叉快速卡入（咬接式安装）。

Faston 6.3 x 0.8 mm 接线端子连接。

面板安装，最大厚度为 1、1.5 或 2 mm。

C14 类型连接器。

### 标准

  UL、CSA、VDE、CCC、SEMKO 和 SEV。

得捷:
PWR ENT RCPT IEC320-C14 PANEL QC

欧时:
0,3 INLET SNAP 6,3MM FASTON 1MM

e络盟:
SCHURTER  6100.4310  电源入口插座, IEC, C14, 6100, 10A

艾睿:
There won&s;t be any energy loss when you power up your circuit using the inlets 6100.4310 power connector from Schurter. This PL connector has 3 PL contacts. This connector has a single port. It has a straight body orientation. It has a plug type gender. It has a maximum voltage rating of 250 VAC. 6100.4310 is housed in thermoplastic. This device has a maximum current rating of 15 A. This power connector has a minimum operating temperature of -25 °C and a maximum of 70 °C. This product is 30 mm long, 23 mm tall and 28.5 mm deep. Its 3 terminals use the solder termination method.

Allied Electronics:
Power Entry Modules; AC; PNL SNAP-IN .250QC

安富利:
6100 APPLIANCE INLET 10A 70°

TME:
Connector: AC supply; IEC 60320; C14 E; socket; male; 10A; 250VAC

Verical:
Conn Inlet PL 3 POS Solder ST Panel Mount 3 Terminal 1 Port Box

Newark:
# SCHURTER  6100.4310  INLET, IEC, C14, 6100, 10A

MASTER:
6100 APPLIANCE INLET 10A 70

CDI:
6100 APPLIANCE INLET 10A 70¦

Electro Sonic:
6100 APPLIANCE INLET 10A 70
