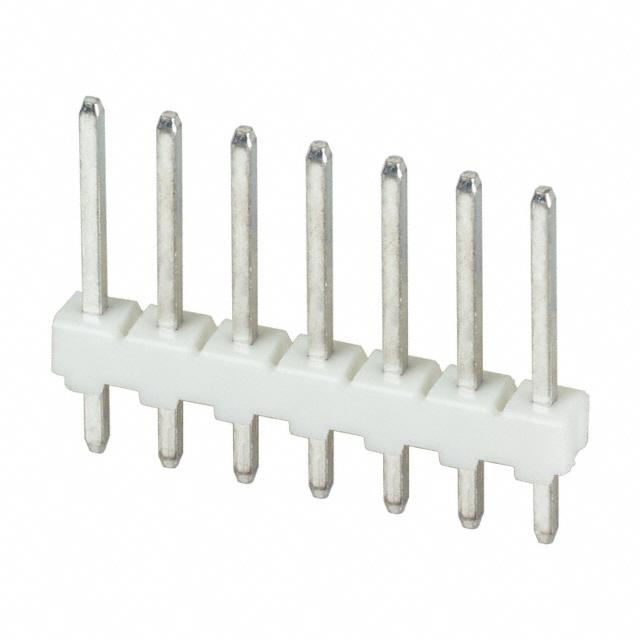

Conn Unshrouded Header HDR 7POS 2.54mm Solder ST Thru-Hole
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole
Product Highlights
MTA-100 Connectors
7 Position
Mating Type = Header
Wire-to-Board Application
2.54 mm Contact Centerline Spacing
Search Keywords:
5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
得捷:
CONN HEADER VERT 7POS 2.54MM
Verical:
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole
MASTER:
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole
Electro Sonic:
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole
触点数 7
极性 Male
触点电镀 Tin Lead
排数 1
方向 Vertical
电路数 7
易燃性等级 UL 94 V-0
针脚数 7
安装角度 180 °
额定电流Max 5A/触头
额定电压Max 250 VAC
接触电阻Max 6 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 17.5 mm
宽度 2.34 mm
高度 10.03 mm
引脚间距 2.54 mm
外壳颜色 White
颜色 Natural
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Superseded
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
