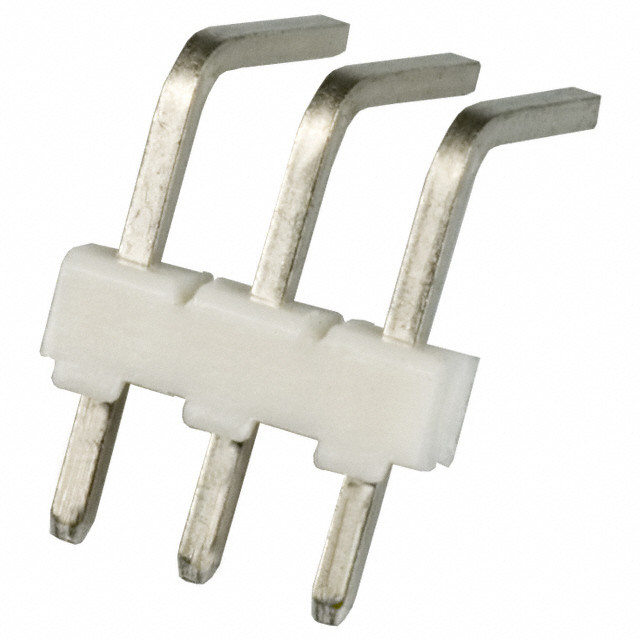

Conn Unshrouded Header HDR 3POS 2.54mm Solder RA Thru-Hole
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole
Product Highlights
MTA-100 Connectors
Number of Positions = 3
Mating Type = Header
Wire-to-Board Application
2.54 mm Contact Centerline Spacing
Search Keywords:
5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
得捷:
CONN HEADER R/A 3POS 2.54MM
艾睿:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole
Chip1Stop:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole
Verical:
Conn Unshrouded Header M 3 POS 2.54mm Solder RA Side Entry Thru-Hole
MASTER:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole
Electro Sonic:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole
触点数 3
极性 Male
触点电镀 Tin Lead
绝缘电阻 5000 MΩ
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 3
安装角度 90.0 °
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 6 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 7.32 mm
宽度 2.34 mm
高度 6.35 mm
引脚间距 2.54 mm
外壳颜色 White
颜色 Natural
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Superseded
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
