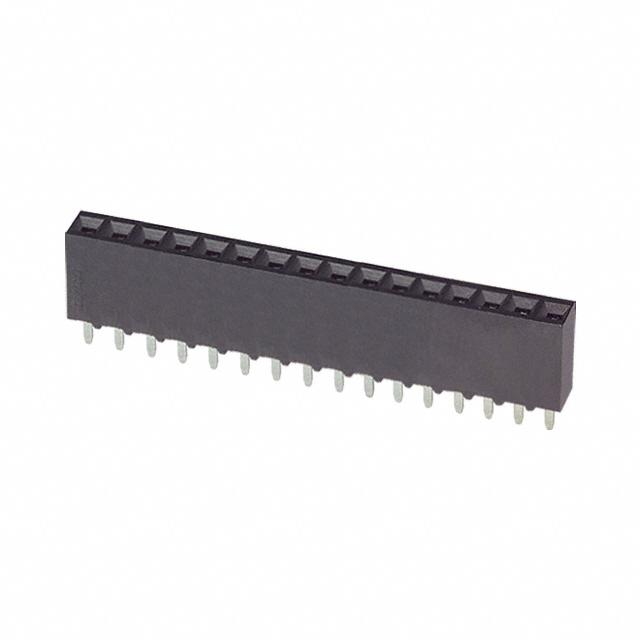

AMP FROM TE CONNECTIVITY 6-534237-4 板至板连接, AMPMODU Mod IV系列, 16 触点, 插座, 2.54 mm, 通孔安装, 1 排
The is a 16-position 1-row vertical board-to-board Receptacle Assembly with gold-plated phosphor bronze contact and black GF polyester housing. The connector supports through-hole solder termination method to PC board and board standoff assembly process feature. It is applicable to printed circuit board. Vertical receptacle assemblies are designed to reliably and economically meet the packaging and interconnection requirements of today"s electronics industry.
- .
- Square contact shape
- .
- Short point contact configuration
- .
- Closed entry, top housing entry style
触点数 16
极性 Female
触点电镀 Gold, Tin over Nickel
额定电流 2 A
绝缘电阻 5.00 GΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 16
额定电流Max 2A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 333 VAC
额定电压 750 V
接触电阻Max 12 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 40.64 mm
宽度 3.56 mm
高度 8.64 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, -, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
