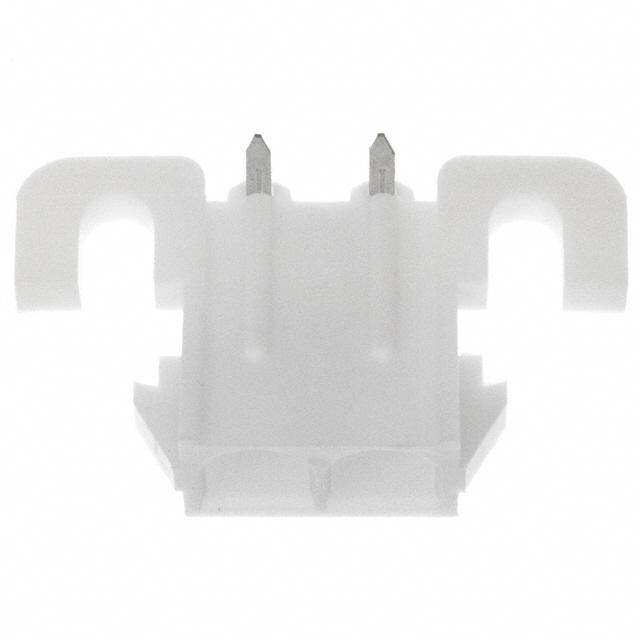

AMP FROM TE CONNECTIVITY 643226-1 插接连接器, 母, 2路
02P UMNL HDR ASSY R/A 94VO
Product Highlights
Header
Universal MATE-N-LOK, Universal MATE-N-LOK II
Not CompactPCI
6.35 mm Centerline, Matrix
Number of Circuits = 2
得捷:
CONN HDR 2POS 0.25 TIN PCB R/A
立创商城:
643226-1
e络盟:
矩形连接器, Universal MATE-N-LOK Series, 2 触点, 插座, 6.35 mm, 焊接, 1排
艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 643226-1 power connector from TE Connectivity for a secure connection! This SKT connector&s;s 2 contacts that are made out of phosphor bronze and plated with pre-tin. Its pitch is 6.35 mm. It has a socket type gender. It has a maximum voltage rating of 600 VAC. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 19 A/contact. 643226-1 is housed in nylon. This product is 31.62 mm long, 9.14 mm tall and 17.27 mm deep. Its 2 terminals use the solder termination method.
Jameco:
Connector Socket 2 Position 6.35mm Solder Right Angle Thru-Hole 2 Terminal 1 Port
安富利:
Conn Power SKT 2 POS 6.35mm Solder RA Thru-Hole 2 Terminal 1 Port
Chip1Stop:
Conn Power SKT 2 POS 6.35mm Solder RA Thru-Hole 2 Terminal 1 Port Automotive Bag
Verical:
Conn Power SKT 2 POS 6.35mm Solder RA Thru-Hole 2 Terminal 1 Port Bag
Newark:
# AMP - TE CONNECTIVITY 643226-1 02P UMNL HDR ASSY R/A 94VO
MASTER:
SOCKET HEADER ASSEMBLY,
Powell:
.250" Centerline, 600 V, 19 - 36 A max
Online Components:
02P UMNL HDR ASSY R/A 94VO
Electro Sonic:
02P UMNL HDR ASSY R/A 94VO
触点数 2
极性 Female
触点电镀 Tin
额定电压AC 600 V
额定电流 12 A
绝缘电阻 1000 MΩ
排数 1
方向 Right Angle
电路数 2
易燃性等级 UL 94 V-0
针脚数 2
拔插次数 50
额定电流Max 19A/触头
额定电压Max 600 VAC
额定电压 600 V
安装方式 Through Hole

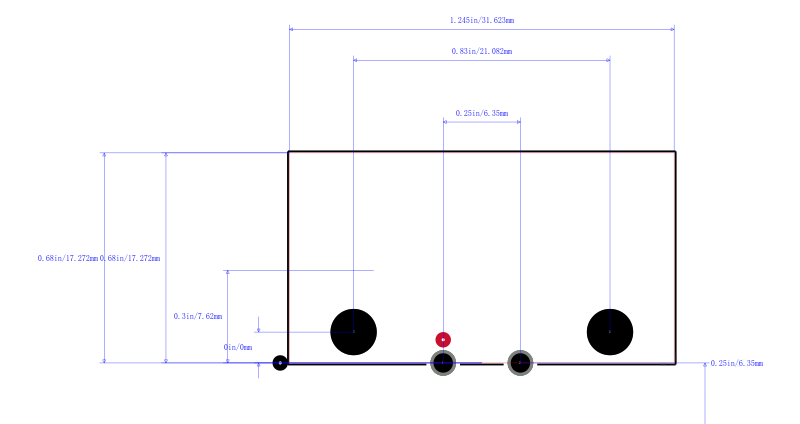

封装 弯插,P=6.35mm
引脚间距 6.35 mm
长度 31.62 mm
宽度 17.27 mm
高度 9.14 mm
封装 弯插,P=6.35mm
引脚间距 6.35 mm
外壳颜色 White
颜色 Natural
触点材质 Phosphor Bronze
材质 Nylon
外壳材质 Nylon
产品生命周期 Active
包装方式 Bag
制造应用 照明, 消费电子产品, 便携式器材, 电源供给, Power, -, 商业, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
