614NGHH

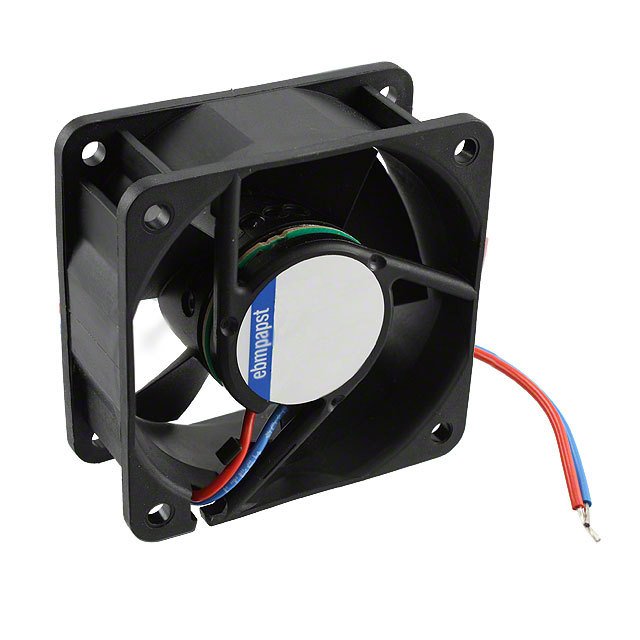

614NGHH图片1
614NGHH图片2
614NGHH图片3
614NGHH图片4
614NGHH图片5
614NGHH图片6
614NGHH概述

EBM PAPST  614NGHH  轴流风扇, 管轴式, 方形, 接线引脚, 管套, 600NG系列, 24 VDC, 60 mm, 25 mm, 33 cu.ft/min, 0.92 m³/min

The is a 24VDC Axial Fan with sleeve bearing, electronically commutated external rotor motor, fully integrated communication electronics with electronic protection against reverse polarity, blocking and overloading, mounting from either face using four 3 fibreglass-reinforced plastic PA impeller and PBTP housing 7mm holes, wire leaded power connection. Axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.
Exhaust over struts direction of air flow
.
Counter-clockwise direction of rotation seen on rotor
.
22AWG Leads 2-wire connection
614NGHH中文资料参数规格
技术参数

额定功率 3.8 W

工作温度Max 70 ℃

额定电压 24 VDC

电源电压 24 VDC

外形尺寸

宽度 25.40 mm

高度 25.4 mm

物理参数

重量 86.18 g

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买614NGHH
型号: 614NGHH
制造商: Papst
描述:EBM PAPST  614NGHH  轴流风扇, 管轴式, 方形, 接线引脚, 管套, 600NG系列, 24 VDC, 60 mm, 25 mm, 33 cu.ft/min, 0.92 m³/min
替代型号614NGHH
型号/品牌 代替类型 替代型号对比

614NGHH

Papst

当前型号

当前型号

614NGHH-F00

Papst

完全替代

614NGHH和614NGHH-F00的区别
