640904-1

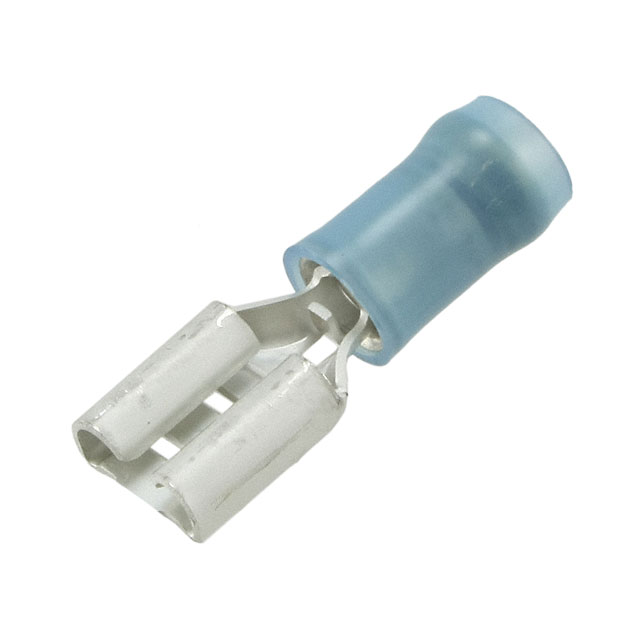

640904-1图片1
640904-1图片2
640904-1图片3
640904-1图片4
640904-1图片5
640904-1图片6
640904-1图片7
640904-1图片8
640904-1概述

PIDG Faston 16-14 AWG 直 绝缘 快速断开 插座

0.250"(6.35mm) 快速连接 母头 14-16 AWG 压接 非配接端绝缘


得捷:
CONN QC RCPT 14-16AWG 0.250


艾睿:
The best way to connect two terminal blocks in your application is by using the quick disconnect terminal 640904-1 wire terminal from TE Connectivity. It has a female type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 14-16 AWG. This product is 22.9 mm long and 7.62 mm.


安富利:
Quick Disconnect Terminal 14-16AWG F 22.9mm 7.62mm Tin Strip


Verical:
Quick Disconnect Terminal 14-16AWG Brass Blue F 22.9mm Tin Package


MASTER:
RECEPTACLE, 250 SERIES, FASTON , PIDG , 16-14


Powell:
Quick Disconnect Receptacles - Insulated


Electro Sonic:
RECEPT,PIDG FASTON 16-14 250


640904-1中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 16AWG

触点电镀 Tin

方向 Straight

工作温度Max 105 ℃

额定电压Max 300 VAC

外形尺寸

长度 22.86 mm

物理参数

颜色 Blue

触点材质 Brass

材质 Brass

绝缘材质 Nylon

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买640904-1
型号: 640904-1
描述:PIDG Faston 16-14 AWG 直 绝缘 快速断开 插座
