640007-1概述

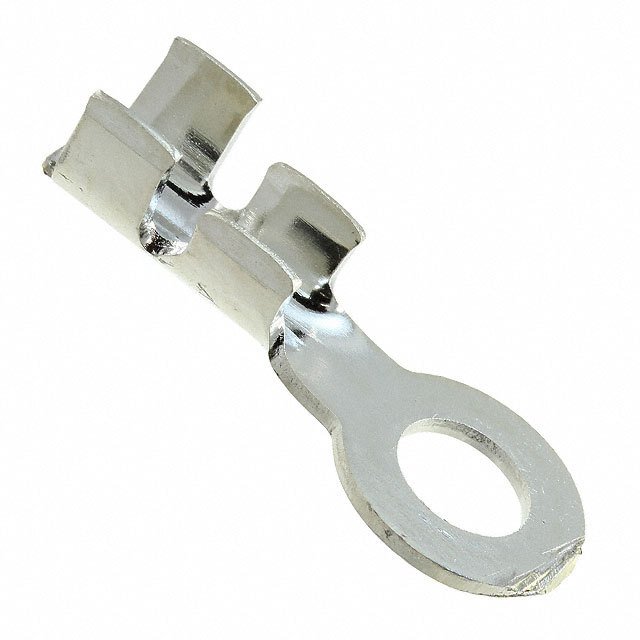

Ring Tongue Terminal 14-16AWG 22.17mm 9.53mm Bright Tin Automotive Strip

RING TERMINAL 16-14 AWG BTPBR

Product Highlights

Terminal Shape = Ring Tongue

Receptacle Style = Straight

Barrel Type = Open Barrel

Wire/Cable Type = Regular Wire

Wire Range = 1.25-2.00² [16-14] mm [AWG]


立创商城:
640007-1


得捷:
CONN RING CIRC 14-16AWG #10


艾睿:
The best way to connect two terminal blocks in your application is by using the ring tongue terminal 640007-1 wire terminal from TE Connectivity. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 22.17 mm long and 9.53 mm. Its wire is 14-16 AWG.


安富利:
Ring Tongue Terminal 14-16AWG 22.17mm 9.53mm Bright Tin Strip


MASTER:
RING


Powell:
Ring and Spade Tongue Terminals


Electro Sonic:
RING TERMINAL 16-14 AWG BTPBR


640007-1中文资料参数规格
技术参数

线规 14AWG ~ 16AWG

方向 Straight

端接类型 Ring Lug, Ring

工作温度Max 150 ℃

工作温度Min -65 ℃

封装参数

封装 -

外形尺寸

长度 22.17 mm

封装 -

厚度 0.76 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买640007-1
型号: 640007-1
描述:Ring Tongue Terminal 14-16AWG 22.17mm 9.53mm Bright Tin Automotive Strip
