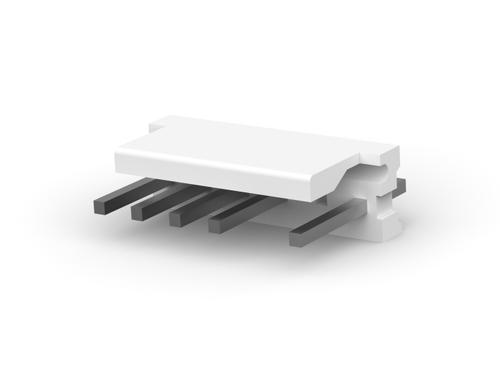

MTA-156 6 位置 通孔 单排 直 线对板 插头
06P MTA156 HDR ASSY W/O#2
Product Highlights
MTA-156 Connectors
Number of Positions = 6
Mating Type = Header
Wire-to-Board Application
3.96 mm Contact Centerline Spacing
得捷:
CONN HEADER 6POS VERT .156 TIN
艾睿:
This wire to board 643569-3 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with tin. This is a 1-row connector. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. 643569-3 is housed in natural polyester. It uses the solder termination method. This product is 23.77 mm long, 13.33 mm tall and 7.62 mm deep.
安富利:
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole
Verical:
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Package
Newark:
# AMP - TE CONNECTIVITY 643569-3 06P MTA156 HDR ASSY W/O#2 New
MASTER:
MTA-.156 HEADER ASSEMBLY, FRICTION LOCK, STRAIGHT .045 SQUARE POST, TIN PLATED, 6 POSITION, OMITTED POST
Electro Sonic:
06P MTA156 HDR ASSY W/O#2
触点数 6
极性 Male
触点电镀 Tin
额定电压AC 600 V
额定电流 7.00 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 6
带凸肩 No
额定电流Max 7A/触头
额定电压Max 600 VAC
安装方式 Through Hole
高度 13.33 mm
外壳颜色 Natural
颜色 Natural
触点材质 Copper Alloy
外壳材质 Polyester
产品生命周期 Active
包装方式 Box
制造应用 通用,工业, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
