6-103169-5

Conn Shrouded Header HDR 34POS 2.54mm Solder ST Thru-Hole Tray

34 MODII HDR DRST SHRD .100CL

Product Highlights

Connector

Connector Type = Header - Pin

Header Type = Shrouded

34 Positions

Mating Post Length = 8.08 mm

得捷:
CONN HEADER VERT 34POS 2.54MM

艾睿:

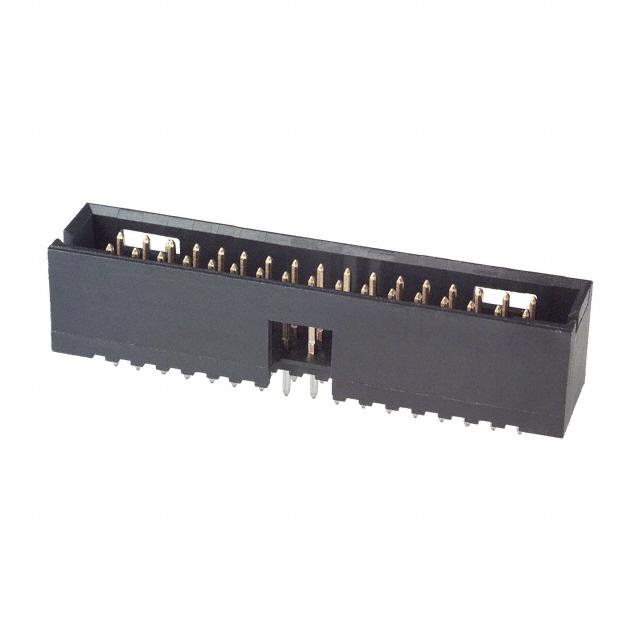

Make strong and binding connections on your circuit boards by adopting this shrouded 6-103169-5 connector from TE Connectivity. This HDR connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. This component will be shipped in tray format. It uses the solder termination method. This product is 50.29 mm long, 11.18 mm tall and 10.16 mm deep. This connector has an operating temperature of -55 to 105 °C. 6-103169-5 is housed in black thermoplastic.

安富利:
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Gang of Tubes

Verical:
Conn Shrouded Header 4 Sides HDR 34 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  6-103169-5  34 MODII HDR DRST SHRD .100CL New

MASTER:
HDR ASSY, MOD II, SHROUDED, 4 SIDES, DBL ROW, VERTICAL, .100X.100 C/L, WITH .025 SQ POSTS

Powell:
.100 inch AMPMODU Headers

Online Components:
34 MODII HDR DRST SHRD .100CL

Electro Sonic:
34 MODII HDR DRST SHRD .100CL
