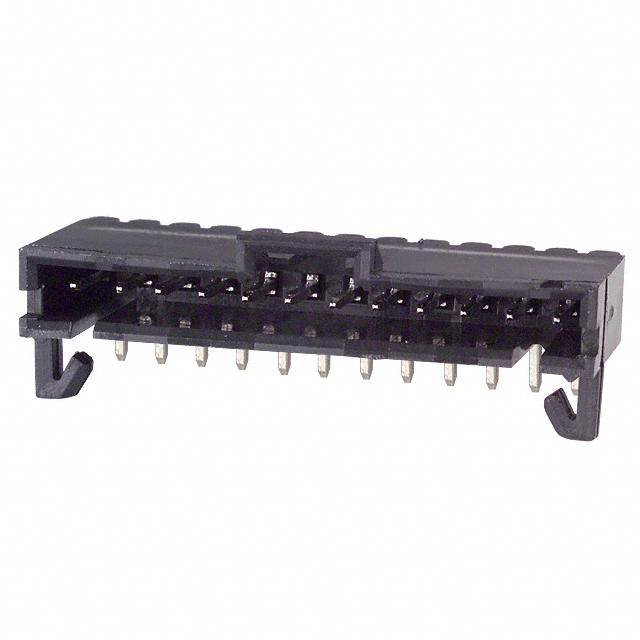

6-103672-1

集管和线壳 LATCHING HDR SHRD 12 W/ HOLD-DN TIN CONT

Connector Header Through Hole, Right Angle 12 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 12POS 2.54MM

贸泽:
集管和线壳 LATCHING HDR SHRD 12 W/ HOLD-DN TIN CONT

艾睿:
Use this shrouded 6-103672-1 header connector from TE Connectivity where IDC ribbon cables are used. This HDR connector&s;s 12 contacts that are made out of brass and plated with tin over nickel. It has a right angle body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 6-103672-1 is housed in black thermoplastic. This product is 33.02 mm long, 6.99 mm tall and 13.59 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 2.54mm Solder RA Thru-Hole Box/Tube

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
12 MTE HDR SRRA LATCH W/HLDWN
