62C64-1100EC

3M  62C64-1100EC  连接器, DIN 41612, 62CXX系列, 64 触点, 插座, 2.54 mm, 3排, a + c

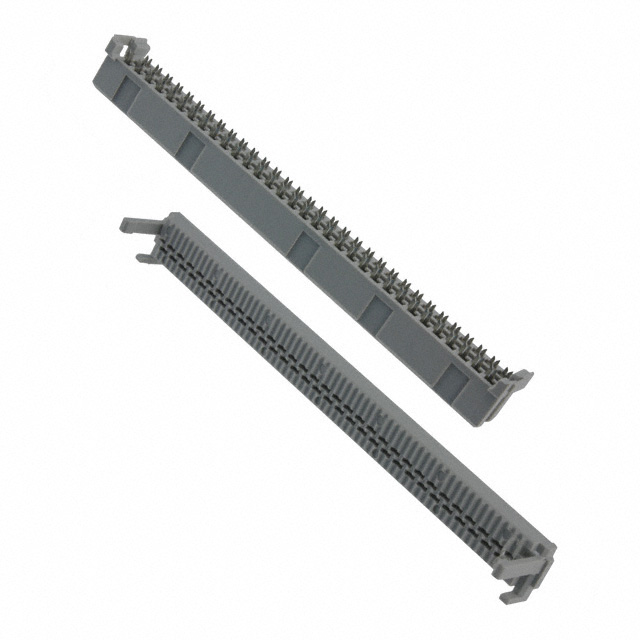

The is a 64-way Type C Eurosocket with rows A and C filled, gold-plated copper alloy contacts. This 62CXX series socket is glass filled polyester PBT insulated, mates with DIN 41612 type C headers, can be daisy-chained or end terminated to flat cable. This has high density, individual connector coding with 3435-1 keying plug without mounting flange.

.

Grey colour

.

High reliability contact design

.

UL94V-0 Flammability rating

.

1A Current rating

.

>1 x 10⁹R at 500VDC Insulation resistance

.

-55 to 125°C Temperature rating
