6-103635-5

Conn Shrouded Header HDR 16POS 2.54mm Solder RA Thru-Hole Tube

16 MTE HDR SRRA LTCH.100CL LF

Product Highlights

Header

Number of Positions = 16

Number of Rows = Single

Post Size = 0.64 [.025] mm [in]

Terminate To Printed Circuit Board

得捷:
CONN HEADER R/A 16POS 2.54MM

艾睿:

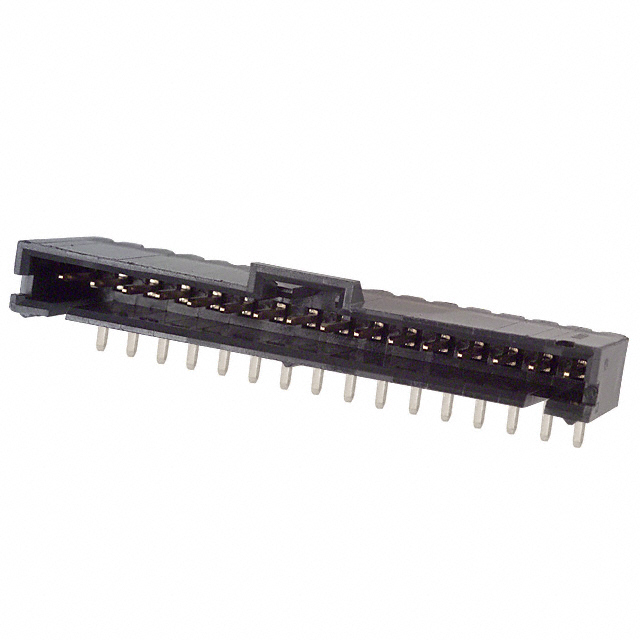

Support physical configuration options for jumper posts by mounting this shrouded 6-103635-5 header connector from TE Connectivity. This HDR connector&s;s 16 contacts that are made out of brass and plated with gold over nickel. This is a 1-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 6-103635-5 is housed in black thermoplastic. This product is 43.18 mm long, 6.98 mm tall and 13.59 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides M 16 POS 2.54mm Solder RA Side Entry Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  6-103635-5  16 MTE HDR SRRA LTCH.100CL LF New

MASTER:
HDRASSY,RTANG,SGLEROW2.54[.100]C/L,0.64[.025]SQPST, WITHPLZN&LATCHING;,AMPMODUMTE

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
16 MTE HDR SRRA LTCH.100CL LF
