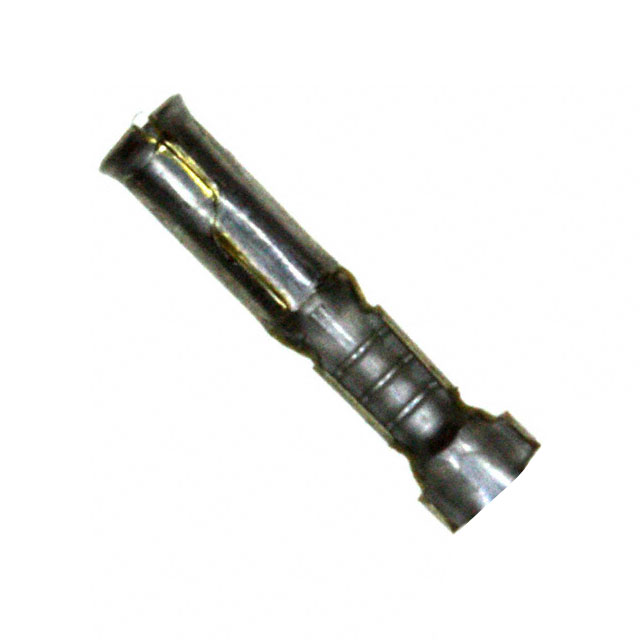

61622-1图片13
61622-1图片14
61622-1图片15
61622-1概述

CONN RECEPT 20-24AWG CRIMP TIN

端子 母型,插座(插口) 20-24 AWG 压接 锡


得捷:
CONN TERM RCPT 20-24AWG CRIMP


立创商城:
61622-1


艾睿:
Easily improve a secured connection with this specially engineered 61622-1 connector contact from TE Connectivity. It has a straight body orientation. It has a socket type gender. This has a Connector Headers and PCB Receptacles connector. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the crimp termination method. Its wire is 20-24 AWG. This product is 10.54 mm long and 2.92 mm.


Chip1Stop:
Contact SKT Crimp ST Cable Mount


Verical:
Contact SKT Crimp ST Cable Mount 20-24AWG T/R Automotive


Newark:
# AMP - TE CONNECTIVITY  61622-1  045SQ POST REC 24-20 010PTPBR New


MASTER:
SQUARE, 24-20 AWG, .070 MAX


Powell:
Pins and Receptacles


Electro Sonic:
045SQ POST REC 24-20 010PTPBR


61622-1中文资料参数规格
技术参数

触点数 1

极性 Female

线规 20AWG ~ 24AWG

方向 Straight

封装参数

封装 -

外形尺寸

长度 10.54 mm

宽度 2.92 mm

封装 -

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买61622-1
型号: 61622-1
描述:CONN RECEPT 20-24AWG CRIMP TIN
