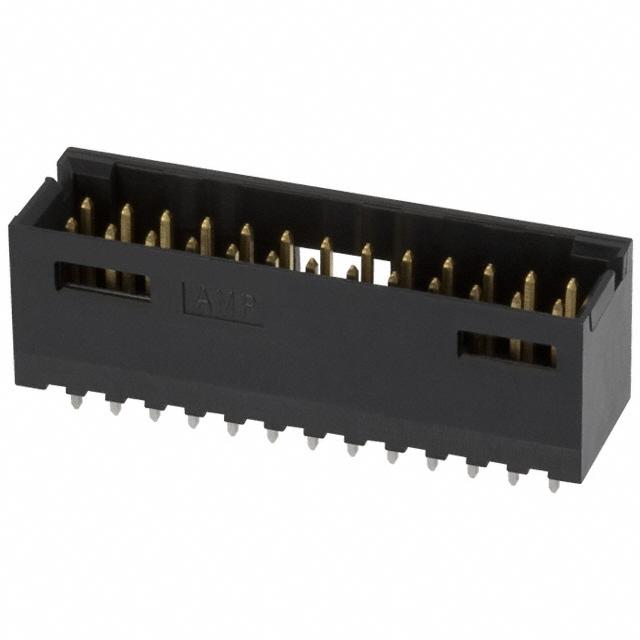

6-102618-1

AMP - TE CONNECTIVITY 6-102618-1 Wire-To-Board Connector, 2.54mm, 26Contacts, Header, AMPMODU Mod II Series, Through Hole, 2Rows

26 MODII HDR DRST SHRD .100CL

得捷:
CONN HEADER VERT 26POS 2.54MM

艾睿:
Use this shrouded 6-102618-1 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This product is 35.86 mm long, 11.18 mm tall and 10.16 mm deep. 6-102618-1 is housed in black thermoplastic. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 26 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  6-102618-1  Wire-To-Board Connector, 2.54 mm, 26 Contacts, Header, AMPMODU Mod II Series, Through Hole, 2 Rows

MASTER:
ASSEMBLY, HEADER, MOD II, .025 SQ POST, DBL ROW, .100 X .100 C/L WITH DETENTS

Powell:
.100 inch AMPMODU Headers

Electro Sonic:
26 MODII HDR DRST SHRD .100CL
