6-534998-5

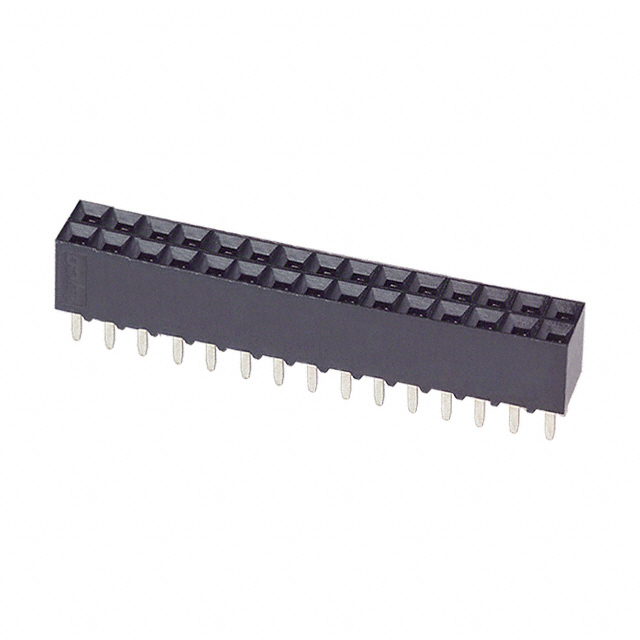

TE CONNECTIVITY 6-534998-5 Board-To-Board Connector, 2.54mm, 30Contacts, Receptacle, AMPMODU Mod IV Series, Through Hole

30 位置 插座 通孔

得捷:
CONN RCPT 30POS 0.1 GOLD PCB

艾睿:
Support physical configuration options for jumper posts by mounting this socket strip 6-534998-5 header connector from TE Connectivity. This RCP connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a receptacle type gender. This device has a maximum current rating of 2 A/contact. This product is 38.1 mm long, 6.73 mm tall and 5.03 mm deep. This connector has an operating temperature of -65 to 105 °C. 6-534998-5 is housed in black polychlorinated terphenyl. It uses the solder termination method.

Chip1Stop:
Conn Socket Strip RCP 30 POS 2.54mm Solder ST Thru-Hole Gang of Tubes

Verical:
Conn Socket Strip F 30 POS 2.54mm Solder ST Top Entry Thru-Hole Box/Tube

Newark:
# TE CONNECTIVITY  6-534998-5  Board-To-Board Connector, 2.54 mm, 30 Contacts, Receptacle, AMPMODU Mod IV Series, Through Hole

MASTER:
RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY, .100X.100CL, VERTICAL MOUNT, AMPMODU

Powell:
.100 inch AMPMODU Receptacles

Online Components:
30 MODIV VRT DR CE 100/125

Electro Sonic:
30 MODIV VRT DR CE 100/125
