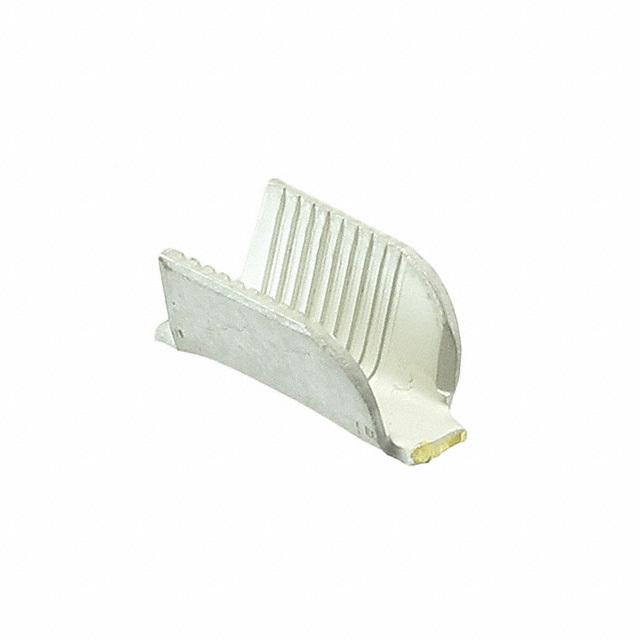

端子 AMVAR SPLC 600-3000
* Compression crimp eliminates cold solder points, weld burns and wire embrittlement usually connected with thermal-type terminations * Excellent tensile strength—vibration resistant * Provides a superior electrical connection that is free of many contaminants such as stripper residue and solder flux * Precision formed, strip-fed splices terminated in AMP automatic machines for high production rates per hour * High termination rates, low wire consumption and the elimination of rejects caused by solder flux or heat damage results in the lowest applied costs * Precisely controlled crimp termination helps eliminate human error for maximum reliability * Splice up to 3 magnet wires together with stranded lead in one barrel * Splice length is increased on larger CMA splices for improved performance * Serration depths are varied within the splice to give optimum electrical/mechanical performance on all wire sizes * Serration sidewall angles are varied to allow better wire stripping and serration fill * Flat bottom of splice helps keep magnet wires on bottom as required during crimping * Splice Type : Pigtail Splice * Serrated : Yes * Barrel Type : Open Barrel * Number of Serrations : 9 * Strip Orientation : End Feed * Splice Material : Brass * Plating Material : Tin * Contact Plating Material : Tin
