Conn IDC Connector F 5POS 2.54mm IDT RA Cable Mount Bag
5 位置矩形连 插座 IDC 锡 - 铅 22 AWG
得捷:
CONN RCPT 5P IDC 22AWG TIN-LEAD
贸泽:
Headers & Wire Housings 5P 22AWG TIN CLSD WITH TAB W/RED STRPE
艾睿:

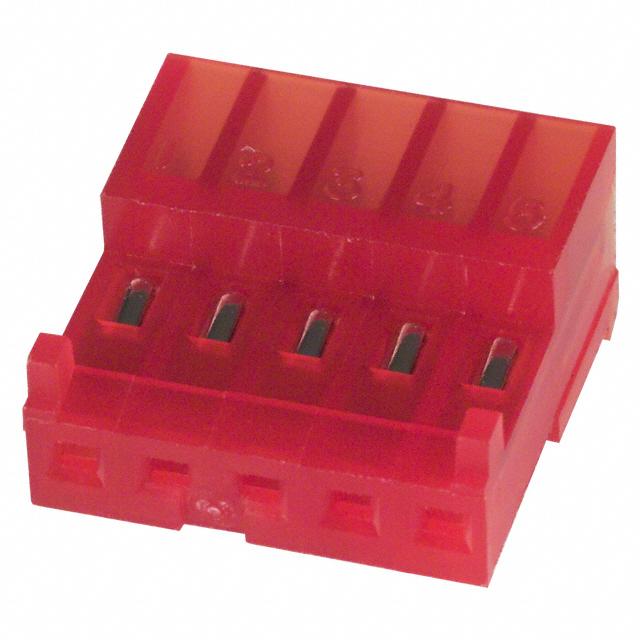

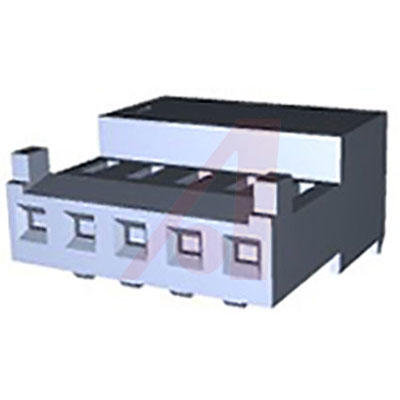

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this idc connector 643813-5 header connector from TE Connectivity. This F connector&s;s 5 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a female type gender. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product is 12.7 mm long, 6.99 mm tall and 13.21 mm deep. 643813-5 is housed in red nylon. It uses the idt termination method. This connector has an operating temperature of -55 to 105 °C.
Allied Electronics:
MTA-100 Series 2.54mm Pitch 5 Way 1 RowFemale Right Angle PCB Connector Housing
安富利:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece
富昌:
5 Position 2.54mm MTA Connector Closed End Socket
Verical:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece
Newark:
# AMP - TE CONNECTIVITY 643813-5 05P MTA100 CONN ASSY POL RIB New
MASTER:
05P MTA100 CONN ASSY POL RIB
Online Components:
05P MTA100 CONN ASSY POL RIB
Electro Sonic:
05P MTA100 CONN ASSY POL RIB
触点数 5
线规 22 AWG
触点电镀 Tin Lead
额定电压AC 250 V
额定电流 5 A
排数 1
易燃性等级 UL 94 V-2
针脚数 5
带凸肩 No
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 6 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 12.7 mm
宽度 6.99 mm
高度 6.99 mm
引脚间距 2.54 mm
外壳颜色 Red
颜色 Red
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 End of Life
包装方式 Bulk
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
