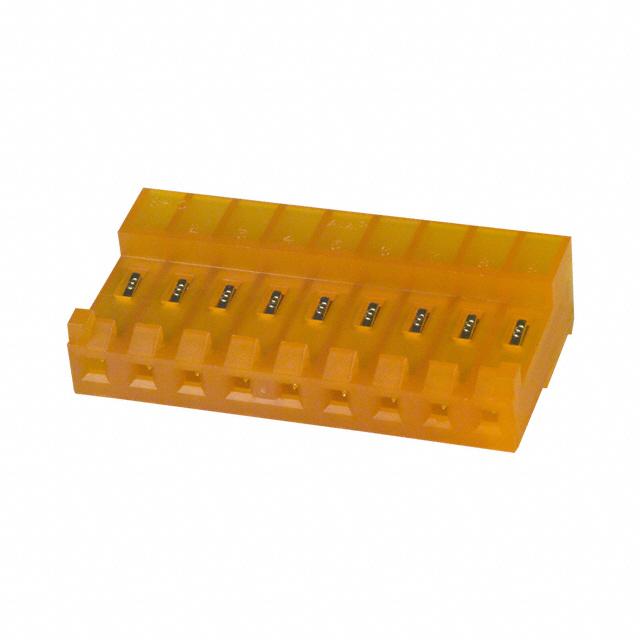

Conn IDC Connector F 9POS 3.96mm IDT RA Cable Mount
9 位置矩形连 插座 连接器 IDC 锡 - 铅 18AWG
得捷:
CONN RCPT 9P IDC 18AWG TIN-LEAD
艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this idc connector 643817-9 header connector from TE Connectivity on your PCB today! This F connector&s;s 9 contacts that are made out of copper alloy and plated with tin-lead. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. It has a right angle body orientation. It has a female type gender. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. This connector has an operating temperature of -55 to 105 °C. It uses the idt termination method. 643817-9 is housed in orange nylon. This product is 35.66 mm long, 9.02 mm tall and 18.42 mm deep.
Verical:
Conn IDC Connector F 9Power POS 3.96mm IDT RA Cable Mount Bag/Box
Newark:
# AMP - TE CONNECTIVITY 643817-9 09P MTA156 CONN ASSY 18AWG ORA New
MASTER:
09P MTA156 CONN ASSY 18AWG ORA
Online Components:
09P MTA156 CONN ASSY 18AWG ORA
Electro Sonic:
09P MTA156 CONN ASSY 18AWG ORA
触点数 9
线规 18 AWG
触点电镀 Tin Lead
额定电压AC 600 V
额定电流 7 A
排数 1
易燃性等级 UL 94 V-2
针脚数 9
带凸肩 No
额定电流Max 7A/触头
额定电压Max 600 VAC
额定电压 600 VAC
接触电阻Max 3 mΩ
引脚间距 3.96 mm
长度 35.7 mm
宽度 9.02 mm
高度 9.02 mm
引脚间距 3.96 mm
外壳颜色 Orange
颜色 Orange
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 End of Life
包装方式 Bulk
制造应用 Power
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
