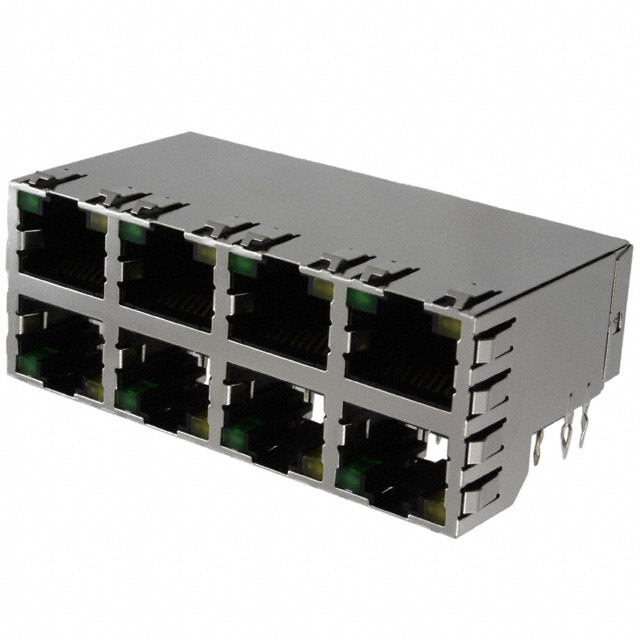

8位置 8触点 2x4 直角 通孔 带LED 堆叠 RJ45 模块化插孔
模块化 - 插孔 8p8c(RJ45,以太网) 90°角(直角) 屏蔽式,EMI指 Cat5
得捷:
CONN MOD JACK 8P8C R/A SHIELDED
贸泽:
Modular Connectors / Ethernet Connectors 2X4 OFFSET STK MJ SHLD,W/G&Y; LEDS
艾睿:
This rj-45 6368062-3 telephone and telecom connector manufactured from TE Connectivity is important for any telecom and telephone needs. This F connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a female type gender. This connector has 8 ports. Its pitch is 2.03 mm. It has a right angle body orientation. The item will be shipped in tray orientation. This product is 59.82 mm long, 22.99 mm tall and 31.06 mm deep. 6368062-3 is housed in black polybutylene terephthalate. It uses the press fit termination method.
安富利:
Conn RJ-45 F 64 POS 2.03mm Press Fit RA Thru-Hole 96 Terminal 8 Port Cat 5
Chip1Stop:
Conn RJ-45 F 64 POS 2.03mm Press Fit RA Thru-Hole 96 Terminal 8 Port Cat 5
Verical:
Conn RJ-45 F 64 POS 1.02mm Press Fit RA Thru-Hole 96 Terminal 8 Port Cat 5 Tray
MASTER:
STACKED MODULAR JACK ASSEMBLY, 2x4 OFFSET, WITH LEDS, 8 POSN, RJ45
Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked
Electro Sonic:
2X4 OFFSET STK MJ,SHLD,W/G&Y; L
触点数 64
触点电镀 Gold, Tin over Nickel
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 Yes
额定电流Max 1.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
长度 59.82 mm
宽度 31.06 mm
高度 22.99 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
