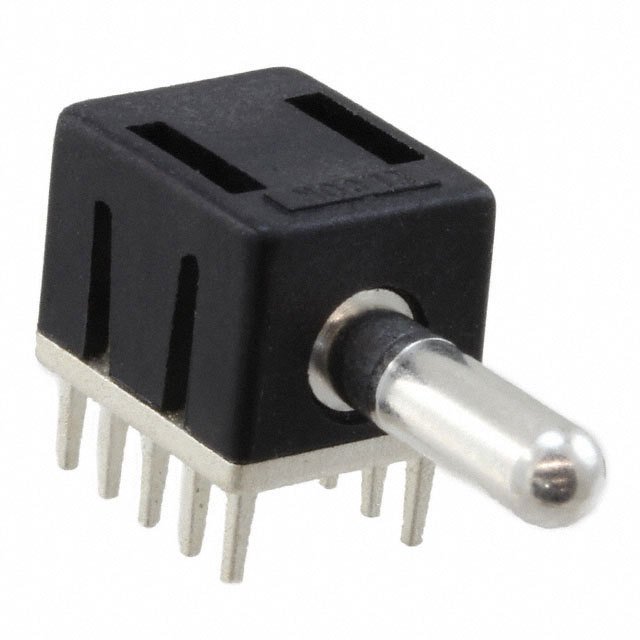

6643276-1图片1
6643276-1图片2
6643276-1图片3
6643276-1图片4
6643276-1图片5
6643276-1图片6
6643276-1图片7
6643276-1图片8
6643276-1概述

Conn Power PL 1POS Solder RA Thru-Hole 10 Terminal 1Port Package

ICCON,PIN,ASSY

Product Highlights

Connector

Pin

Pin Length = 11.93 mm

With Locking Feature

Footprint = 7.62 x 2.54 mm


得捷:
CONN PLUG POWER 1POS PCB


贸泽:
Power to the Board ICCON PIN ASSY SLDR LK 11.93MM


艾睿:
Harsh and stressful environments are no match for this robust 6643276-1 power connector from TE Connectivity. This PL connector&s;s a single contact that is made out of copper alloy and plated with silver. It has a plug type gender. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This connector has a single port. 6643276-1 is housed in thermoplastic. This device has a maximum current rating of 35 A. This power connector has an operating temperature range of -40 °C to 105 °C. Its 10 terminals use the solder termination method. This product is 10.16 mm long, 10.41 mm tall and 24.51 mm deep.


MASTER:
ICCON, PIN, SIZE No.8 PARALLEL SOLDER TAIL, 10 PIN FOOT PRINT LOCKING STYLE, .470 PIN EXT


Powell:
ICCON Single-Pole Power Connectors


Online Components:
ICCON, PIN, SIZE No.8 PARALLEL SOLDER TAIL, 10 PIN FOOT PRINT LOCKING STYLE, .470 PIN EXT


Electro Sonic:
ICCON,PIN,ASSY


6643276-1中文资料参数规格
技术参数

触点数 1

触点电镀 Silver

额定电流 35 A

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 1

额定电流Max 35 A

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 250 VAC

额定电压 250 V

封装参数

安装方式 Through Hole

外形尺寸

高度 10.41 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

工作温度 -40℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册
