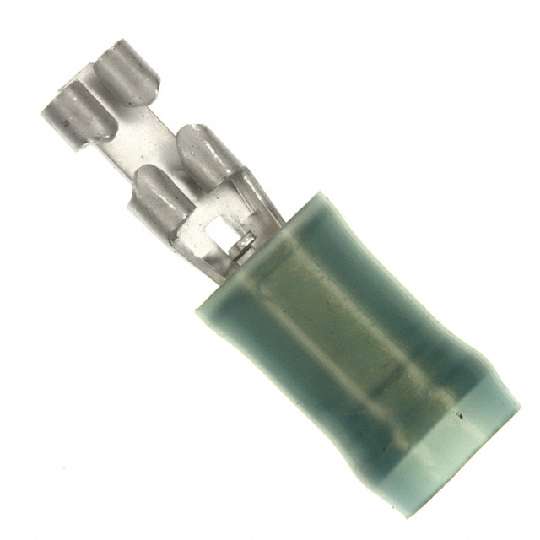

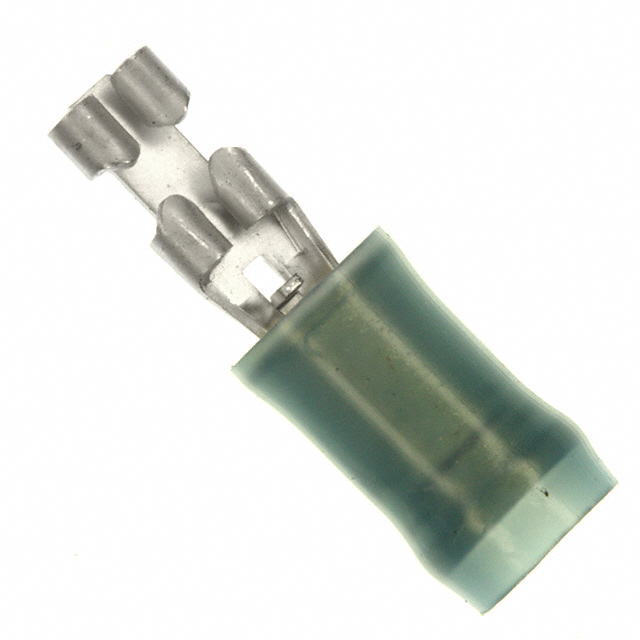

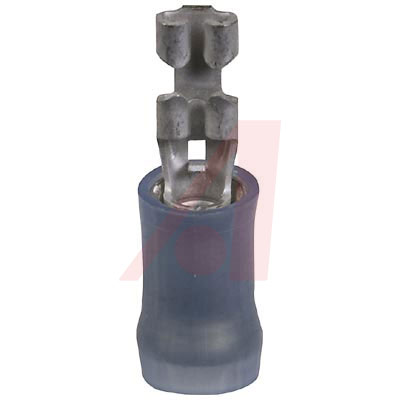

AMP FROM TE CONNECTIVITY 640927-1 绝缘接线端子, 插片式, 母
RECEPT,PIDG FASTON 16-14 110
Product Highlights
Proprietary Name = PIDG FASTON
Receptacle Style = Straight
Wire Range = 1.25-2.00² [16-14] mm [AWG]
Tab Fit = 2.79 x 0.41 mm
Insulation Diameter = 4.32 [.170] Max. mm [in]
得捷:
CONN QC RCPT 14-16AWG 0.110
e络盟:
绝缘接线端子, 插片式, 母
艾睿:
A great way to make a solid connection with terminal blocks is to use this quick disconnect terminal 640927-1 wire terminal from TE Connectivity in your design. It has a female type gender. Its wire is 14-16 AWG. This product is 20.32 mm long and 4.1 mm.
Allied Electronics:
AMP; RECEPTACLE; 16-14AWG; DIMPLE W/WIRE STOP; TIN PLATED BRASS
安富利:
Quick Disconnect Terminal 14-16AWG F 20.32mm 4.1mm Tin Loose Piece
Chip1Stop:
Quick Disconnect Terminal 14-16AWG Brass Blue F 20.32mm Tin Loose
Verical:
Quick Disconnect Terminal 14-16AWG F 20.32mm 4.1mm Tin Loose Piece
Newark:
# AMP - TE CONNECTIVITY 640927-1 Quick Disconnect Terminal, PIDG FASTON 110 Series, 16 AWG, 14 AWG, 2.62 mm²
MASTER:
RECEPTACLE, 110 SERIES, FASTON , PIDG , WIRE SIZE, 16-14 AWG
Powell:
Quick Disconnect Receptacles - Insulated
Online Components:
RECEPT,PIDG FASTON 16-14 110
ICbanQ:
CONN RECEPT FASTON 14-16AWG .110
Electro Sonic:
RECEPT,PIDG FASTON 16-14 110
