650861-4

DIN 41612 连接器 64P EURO RECEPT B

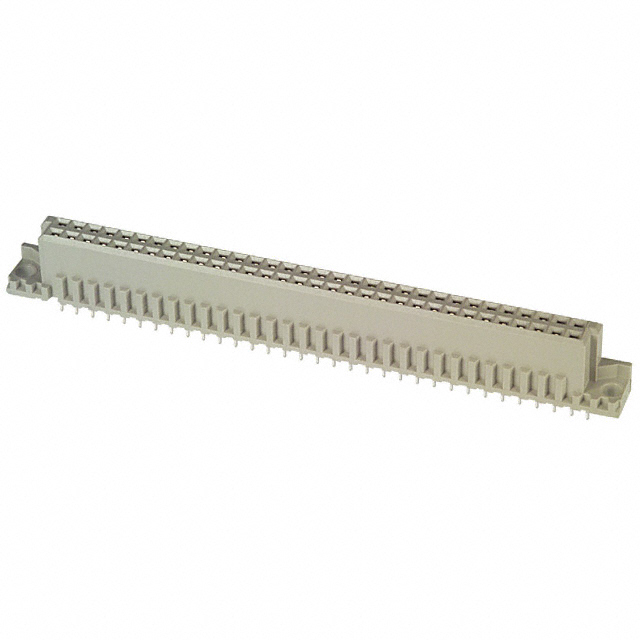

64 Position Din Connector Receptacle, Female Sockets Gold Through Hole

得捷:
CONN DIN RCPT 64POS PCB GOLD

立创商城:
650861-4

贸泽:
DIN 41612 连接器 64P EURO RECEPT B

艾睿:
The speed and size of this din 41612 650861-4 backplane connector from TE Connectivity provide a significant advantage for linking multiple small scale devices and operations. This RCP connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VDC|250VAC. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tray format. 650861-4 is housed in gray polyester. This product is 94 mm long, 11.5 mm tall and 8.06 mm deep. It uses the solder termination method. This backplane connector has an operating temperature of -55 to 125 °C.

安富利:
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  650861-4  DIN 41612 Connector, 64 Contacts, Receptacle, 2.54 mm, 2 Row, a + b

Powell:
Eurocard Type B

Electro Sonic:
064 EURO TYPE B RECEPT ST ASSY
