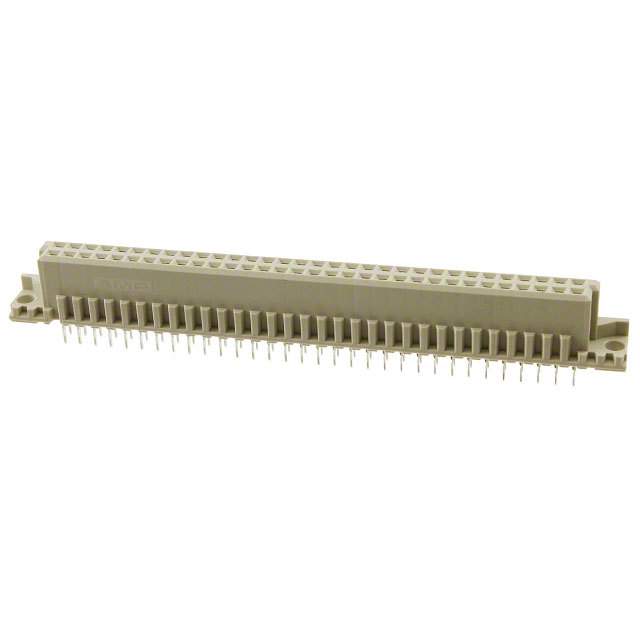

650865-5

Conn DIN 41612 RCP 64POS 2.54mm Solder ST Thru-Hole Tray

64 针位 DIN 插座，母型插口 镀金 通孔

得捷:
CONN DIN RCPT 64POS PCB GOLD

立创商城:
650865-5

艾睿:
This din 41612 650865-5 backplane connector from TE Connectivity will provide an interface between devices. This RCP connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel|palladium nickel over nickel. This is a 2-row connector. It has a receptacle type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a straight body orientation. This device has a maximum current rating of 1.5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 93.98 mm long, 11.51 mm tall and 8.06 mm deep. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 650865-5 is housed in gray polyester.

安富利:
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Tray

Powell:
Eurocard Type B

Electro Sonic:
064 EURO TYPE B RECEPT AP ASSY
