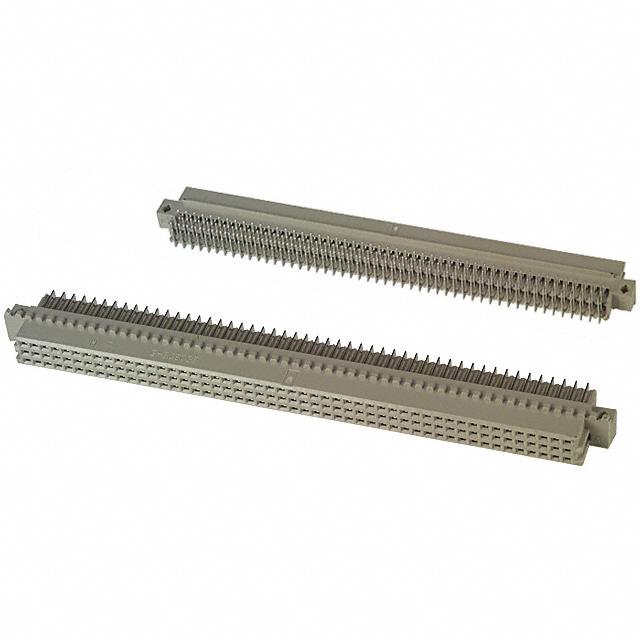

DIN 41612 连接器 150 EURO TYPE R RECE
Solder "s din 41612 backplane connector to your printed circuit board to allow for fast serial bus communication between multiple boards. This RCP connector"s 150 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 3-row connector. Its pitch is 2.54 mm. It has a receptacle type gender. It has a right angle body orientation. It uses the solder termination method. This product is 10.49 mm tall. 650875-5 is housed in gray polyester.
触点数 150
触点电镀 Gold, Tin Lead
排数 3
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 150
额定电流Max 1.5A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 140 mm
宽度 17.6 mm
高度 10.49 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Gray
颜色 Gray
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Box
制造应用 Signal, Power
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
650875-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
5650875-5 泰科 | 功能相似 | 650875-5和5650875-5的区别 |
