POMONA 6721-0 香蕉插头, 多堆叠, 20A, 黑色
香蕉插头,可叠加 标准香蕉式 焊接 黑色
立创商城:
6721-0
得捷:
CONN BANANA PLUG STACK SLDR BLK
贸泽:
Test Plugs & Test Jacks BANANA PLG BLK
e络盟:
香蕉插头, 多堆叠, 20A, 黑色
艾睿:

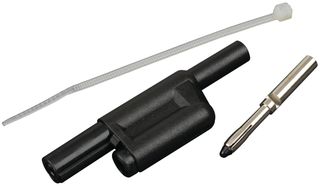

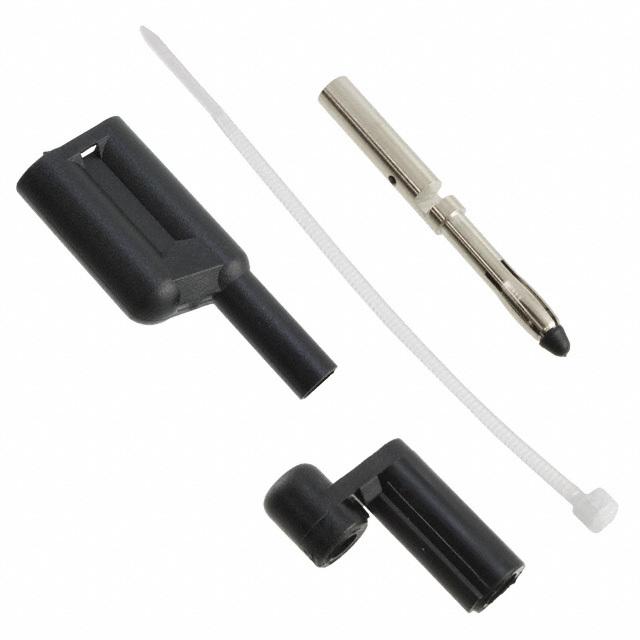

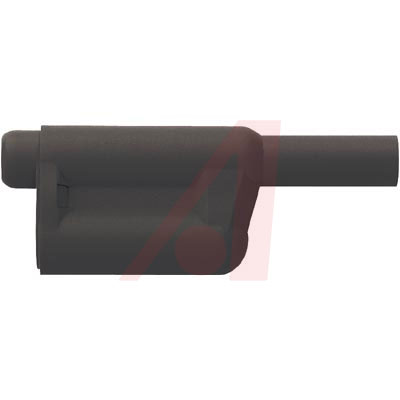

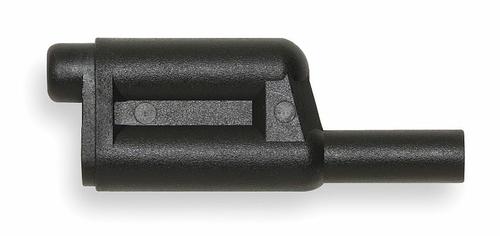

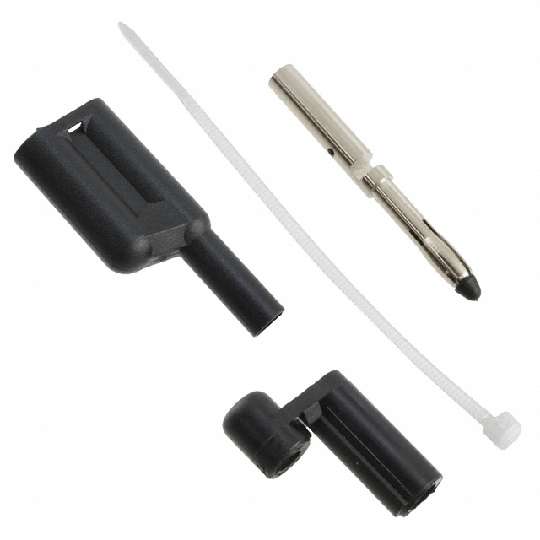

The banana plug 6721-0 test terminal block from Pomona makes it easy to test if your connections are working properly. This PL connector&s;s a single contact that is made out of beryllium copper and plated with nickel. It has a straight body orientation. This connector has a single port. It has a plug type gender. This device has a maximum current rating of 20 A. This test terminal block has a minimum operating temperature of -10 °C and a maximum of 55 °C. It uses the screw termination method. 6721-0 is housed in black lucel. Its wire is 18 AWG. This product is 59 mm long.
Allied Electronics:
Conn; Test; Banana; Plug; Black; 18 AWG; Insulated; 6721 Series; Beryllium Copper; 20A
Newark:
# POMONA 6721-0 BANANA PLUG, MULTI-STACKING, 20A, BLACK
MASTER:
Conn Banana Plug PL 1 POS Screw ST Cable Mount 1 Port
Electro Sonic:
Conn Banana Plug PL 1 POS Screw ST Cable Mount 1 Port
触点数 1
极性 Male
线规 18 AWG
触点电镀 Nickel
额定电压DC 1.00 kV
额定电流 20 A
额定电流Max 20 A
工作温度Max 55 ℃
工作温度Min -10 ℃
额定电压 1 kV
安装方式 Solder
封装 -
长度 2.32 in
高度 58.9 mm
封装 -
颜色 Black
触点材质 Beryllium Copper
工作温度 -10℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
制造应用 测试与测量, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694050
