6728-0概述

POMONA  6728-0  转接头, 4MM香蕉头, 安全, 黑色

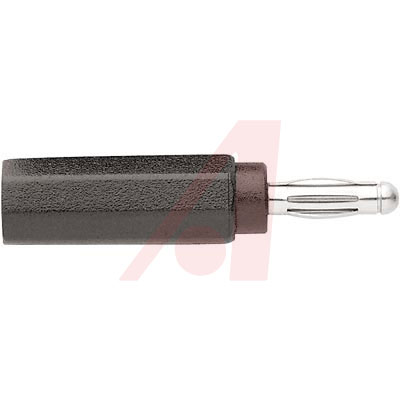

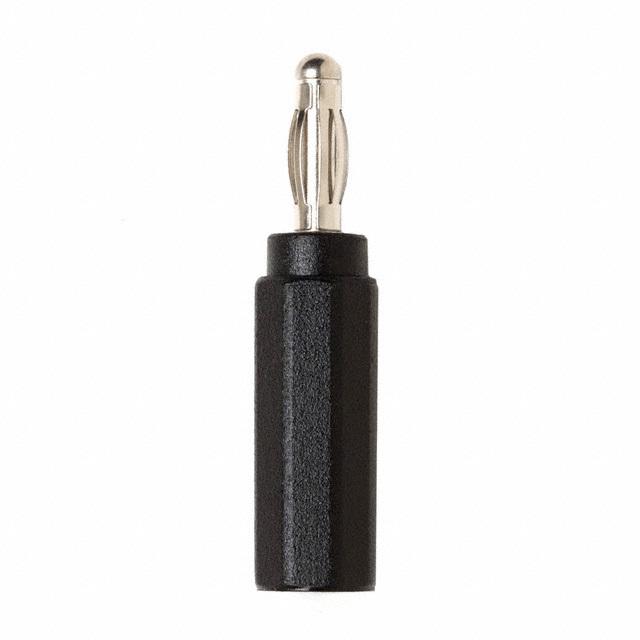

The is a black standard sheath banana jack to non-sheath banana plug Adapter. It provides an easy and quick conversion from a standard sheathed banana plug/patch cord to a standard exposed banana plug. Allows standard sheathed banana plug/patch cord to connect to non-sheath style banana jack or blinding post. Ideal for environments using a mixture of sheathed and non-sheathed style patch cords. Banana jack is made of brass with nickel plated finish. Banana plug is made of beryllium copper with nickel plated finish and nylon 6 insulation.

6728-0中文资料参数规格
技术参数

触点电镀 Nickel

额定电压DC 600 V

额定电流 20 A

额定电流Max 20 A

工作温度Max 55 ℃

工作温度Min -10 ℃

额定电压 600 V

封装参数

安装方式 Panel

封装 600

外形尺寸

长度 1.85 in

封装 600

物理参数

外壳颜色 Black

颜色 Black

触点材质 Beryllium Copper

绝缘材质 Nylon

工作温度 -10℃ ~ 55℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Test & Measurement, 测试与测量

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册
