627-037-220-047

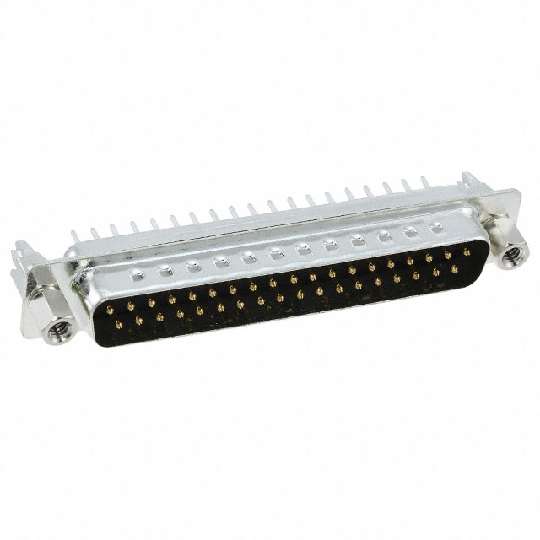

627-037-220-047图片1
627-037-220-047图片2
627-037-220-047图片3
627-037-220-047图片4
627-037-220-047概述

Conn D-Subminiature PIN 37POS 2.76mm Solder ST Thru-Hole 37 Terminal 1Port

37 位 D-Sub 插头,公引脚


得捷:
CONN D-SUB PLUG 37P PNL MNT SLDR


贸泽:
D-Sub Standard Connectors 37P PLUG VERT METAL


Chip1Stop:
Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port


Verical:
Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port


MASTER:
627 Series vertical D-Sub plug connector with 37 pin type contacts that have gold flash plating. The contacts have .105" 2.67mm to .160" 4.06mm long P.C.B tails and the insulator is standard.The body is low profile metal, the flange is mounted with #4


Online Components:
Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port


Electro Sonic:
627 Series vertical D-Sub plug connector with 37 pin type contacts that have gold flash plating. The contacts have .105" ...


Win Source:
CONN D-SUB PLUG 37P PNL MNT SLDR / 37 Position D-Sub Plug, Male Pins Connector


627-037-220-047中文资料参数规格
技术参数

触点数 37

触点电镀 Gold

额定电流 5 A

排数 2

易燃性等级 UL 94 V-0

针脚数 37

额定电流Max 5 A

封装参数

安装方式 Through Hole

引脚间距 2.76 mm

外形尺寸

长度 69.3 mm

宽度 12.6 mm

高度 13.1 mm

引脚间距 2.76 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 -55℃ ~ 105℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买627-037-220-047
型号: 627-037-220-047
制造商: EDAC 亚得
描述:Conn D-Subminiature PIN 37POS 2.76mm Solder ST Thru-Hole 37 Terminal 1Port
