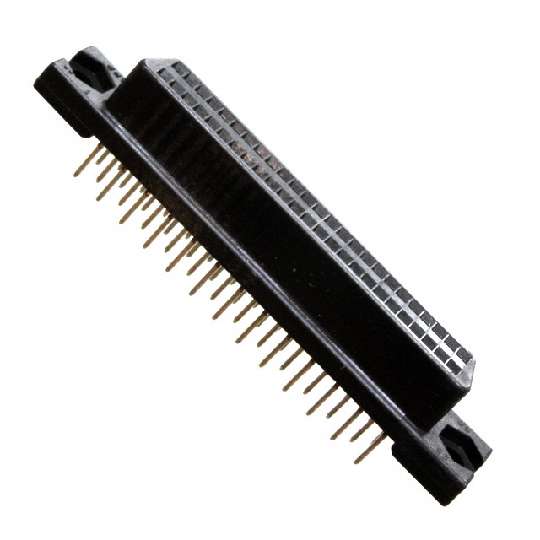

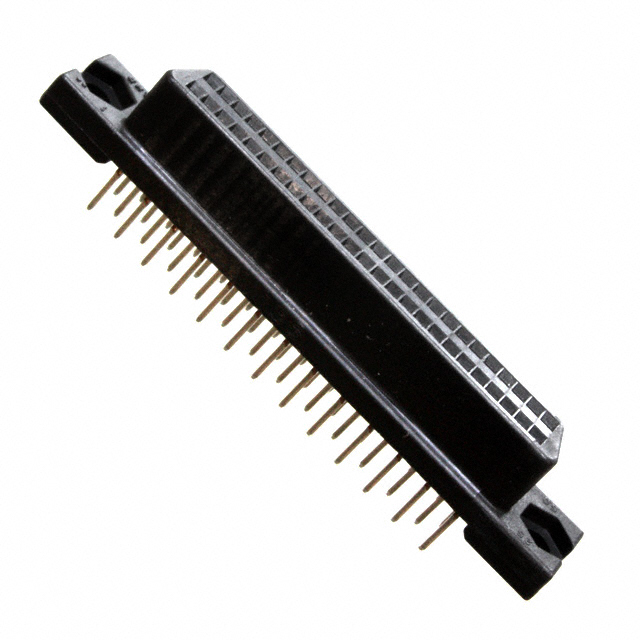

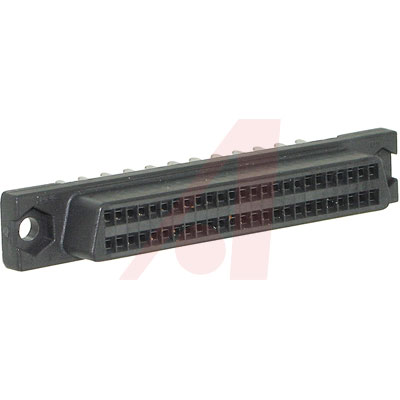

6-5173279-3

Conn D-Subminiature SKT 50POS 2.54mm Solder ST Thru-Hole 50 Terminal 1Port

50 位 D 型，板至板 插头，母插口

得捷:
CONN D-TYPE PLUG 50POS VERT SLDR

艾睿:
The 6-5173279-3 DVI connector from TE Connectivity is ideal for communicating with any serial connections you have. This socket type connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 100 VDC. This 2-row connector has a single port. Its pitch is 2.54 mm. It has a straight body orientation. 6-5173279-3 is housed in polybutylene terephthalate. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. This DVI connector has an operating temperature of -55 to 105 °C. Its 50 terminals use the solder termination method. This product is 40.45 mm long, 7.7 mm tall and 7.3 mm deep.

Allied Electronics:
Conn; D-Sub; PCB Socket; 50Pos; STR; I Series; Solder/Thru-Hole

安富利:
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port

Powell:
.050 Series Board Mount Connectors

Electro Sonic:
MINI MITE PLUG ASSY 50P V
