621-015-260-043

621-015-260-043图片1

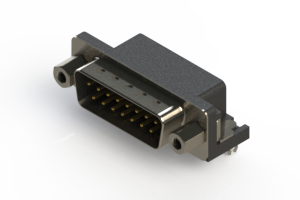

621-015-260-043图片2
621-015-260-043概述

Conn D-Subminiature PIN 15POS 2.74mm Solder RA Thru-Hole 15 Terminal 1Port

Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port


得捷:
CONN D-SUB PLUG 15POS R/A SLDR


贸泽:
D-Sub Standard Connectors 15P PLUG RA .318 FP


Verical:
Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port


MASTER:
621 Series right angle D-Sub plug connector with 15 pin type contacts that have gold flash plating. The connector has a .318" footprint with power contact, the insulator is standard. The board mounting features are 4 prong boardlocks, the flange is mounte


Online Components:
Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port


Electro Sonic:
621 Series right angle D-Sub plug connector with 15 pin type contacts that have gold flash plating. The connector has ...


621-015-260-043中文资料参数规格
技术参数

触点数 15

触点电镀 Gold

额定电流 5 A

排数 2

易燃性等级 UL 94 V-0

针脚数 15

额定电流Max 5 A

封装参数

安装方式 Through Hole

引脚间距 2.74 mm

外形尺寸

长度 39.2 mm

宽度 18.3 mm

高度 12.55 mm

引脚间距 2.74 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 -55℃ ~ 125℃

外壳材质 Plastic

其他

产品生命周期 Unknown

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买621-015-260-043
型号: 621-015-260-043
制造商: EDAC 亚得
描述:Conn D-Subminiature PIN 15POS 2.74mm Solder RA Thru-Hole 15 Terminal 1Port
