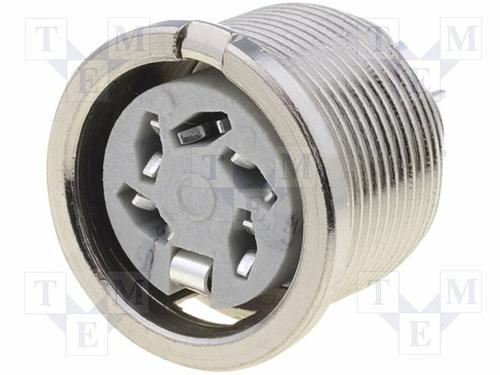

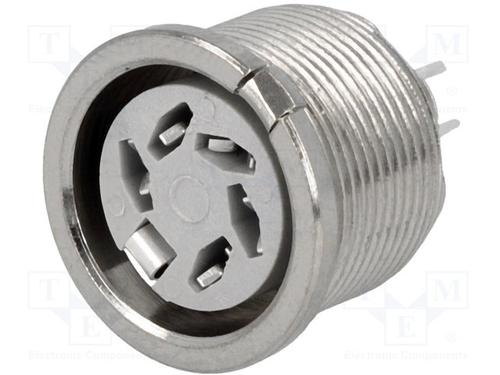

DELTRON COMPONENTS 690-0510 连接器, DIN音频/视频, 屏蔽, 240°, 插座, 5 触点, 电路板安装, 金属主体, 镀银触芯, 690系列
The 690 series fully screened circular DIN Connectors available in two finishes bright nickel and non-reflective electrically conductive matt black. The robust construction incorporates cable grip and strain relief. This line socket mates with all standard and lockable plugs. These are manufactured to DIN 41524, 45322, 45326, 45327 and 45329.
欧时:
5 Way DIN 60 Degree Nickel Circular PCB
e络盟:
连接器, DIN音频/视频, 屏蔽, 240°, 5 触点, 插座, 电路板安装, 通孔 垂直, 镀银触芯, 金属主体
TME:
Socket; DIN; female; PIN:5; Pin layout:240°; THT; 34V; 2A; 10mΩ
Newark:
# DELTRON COMPONENTS 690-0510 DIN Audio / Video Connector, Screened, 240 , Jack, 5, PCB Mount, Metal Body, Silver Plated Contacts
