657-2602-303F概述

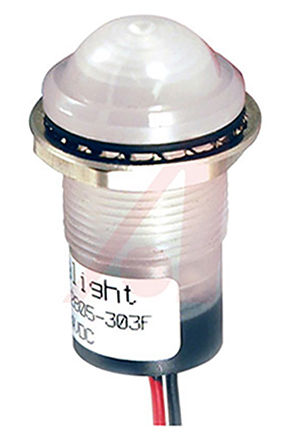

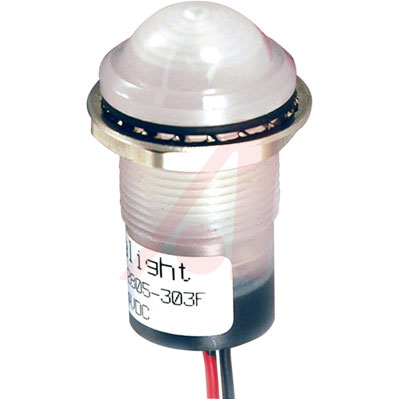

657 系列Dialight 的专业 657 系列是防水型面板安装指示灯,设计用于各种应用。 该系列的指示灯提供红色、黄色、绿色、蓝色、橙色和白色选项。IP67/NEMA 4X 低温触摸操作 抗冲击和振动 提供薄型扁平或广角圆顶类型 符合 RoHS 抗毛细管线 LED 技术设计用于提供长达 10 万小时的操作 ### Dialight LED 面板安装指示灯

, the applied LED technology specialist, now offers a flat and domed version of the successful 657 series panel-mount indicator. The new indicators feature a fully-sealed and potted design, making them impervious to dust and water intrusion and in compliance with IP67/NEMA 4X standards. Using the same high-impact, UV-stabilized lens material as the right-angle version, the indicators are available with tinted, diffused lenses in red, green, yellow, blue, and orange, in addition to a white diffused style to eliminate ‘phantom effect’ in outdoor applications. These rugged, daylight viewable indicators are engineered for outdoor applications such as lane control and signage, as well as construction, transit and military vehicles — anywhere that a vibration-resistant light source is required. The energy efficient LEDs used in these indicators provide up to 100,000 hours of operation, far exceeding the typical life of traditional light sources.

657-2602-303F中文资料参数规格
技术参数

工作电压 5 V

正向电压 5.00 V

发光强度 70 mcd

正向电流Max 18 mA

工作温度Max 65 ℃

工作温度Min -35 ℃

额定电压 5 VDC

封装参数

引脚数 2

物理参数

颜色 Green

工作温度 -35℃ ~ 65℃

外观颜色 White

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买657-2602-303F
型号: 657-2602-303F
制造商: Dialight
描述:657 系列 Dialight 的专业 657 系列是防水型面板安装指示灯,设计用于各种应用。 该系列的指示灯提供红色、黄色、绿色、蓝色、橙色和白色选项。 IP67/NEMA 4X 低温触摸操作 抗冲击和振动 提供薄型扁平或广角圆顶类型 符合 RoHS 抗毛细管线 LED 技术设计用于提供长达 10 万小时的操作 ### Dialight LED 面板安装指示灯
