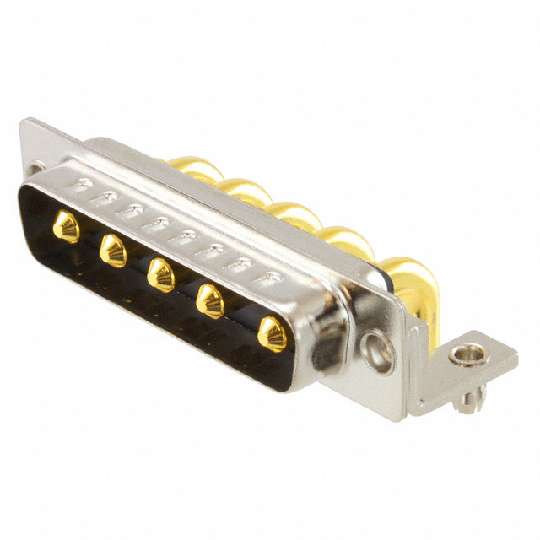

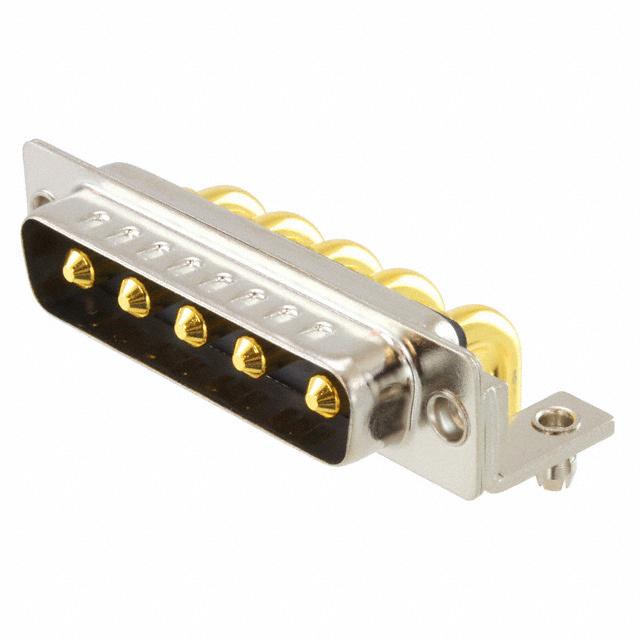

684M5W5103L461

NORCOMP  684M5W5103L461  连接器, 组合式D-SUB, 684M系列, DB-5W5, 插头, 0 触点, 5, 通孔安装

The 684M series POWER-D right angle board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 12 industry standard contact arrangements are 3W3, 3W3K, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4.

.

Available in 9, 15, 25 and 37 sizes/positions

.

Available with 40A power contacts, 5A signal

.

Allows signal, high current and high voltage in one connector

.

Contacts are pre-loaded into the insulator

.

UL94V-0 Flammability

.

Nickel plated, cold rolled steel bracket

.

Nickel plated, brass boardlock
