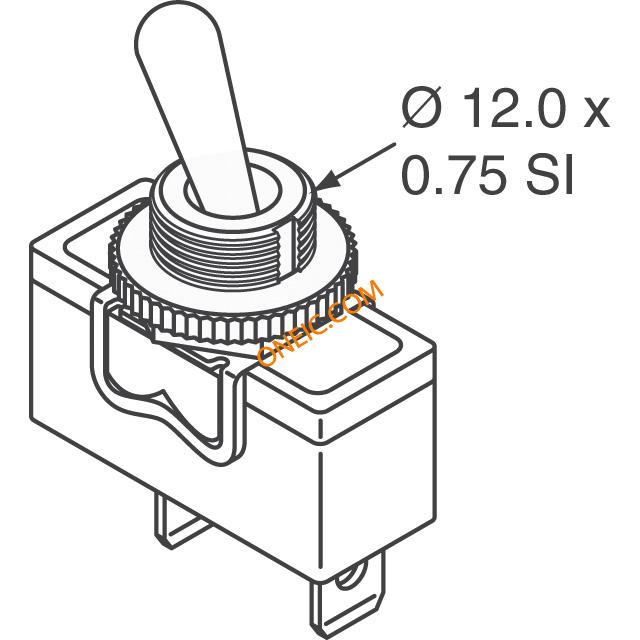

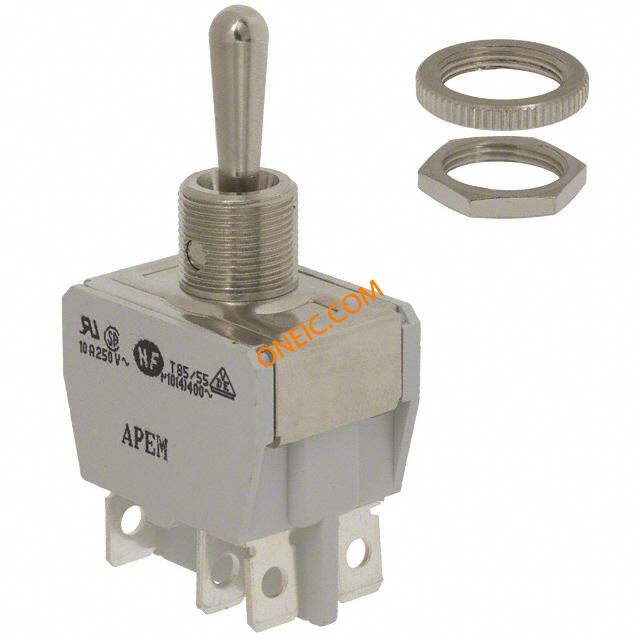

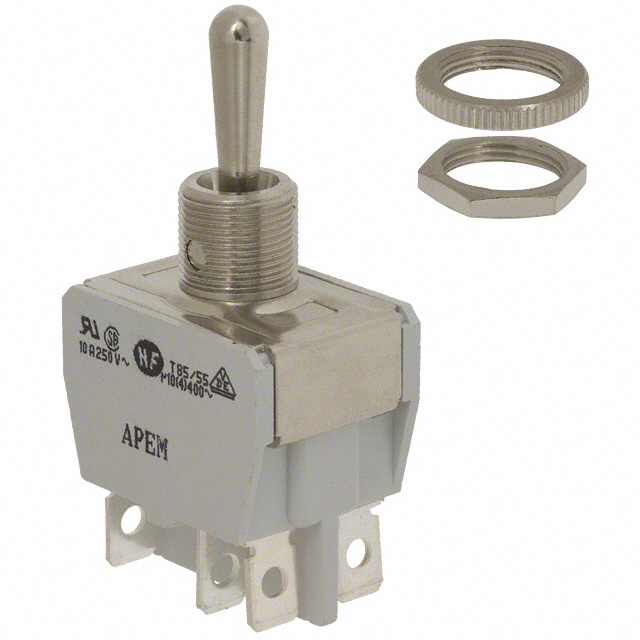

APEM 644H/2 拨动开关, 600H系列, 不发光, DP3T, 开-开-开, 面板, 10 A
The is a 2-pole Toggle Switch with ON-ON-ON function. Terminal and contact support is manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength. This switch is suitable for motor loads and power applications up to 15A/250VAC or 10A/400VAC.
- .
- DPDT Contact Configuration
- .
- 10mR Maximum Initial Contact Resistance
- .
- 1000MR at 500VDC Minimum Insulation Resistance
- .
- 10000-cycle Electrical Life
- .
- Metal Lever Actuator
- .
- Solder Lug and Quick-connect Terminals
触点电镀 Silver
接触器类型 Standard
额定电流 10A AC
绝缘电阻 1.00 GΩ
方向 Vertical
触点类型 DP3T
接触电阻 10.0 mΩ
额定电流Max 15 A
工作温度Max 55 ℃
工作温度Min -20 ℃
额定电压DC Max 25 V
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
触点材质 Copper
工作温度 -20℃ ~ 55℃
包装方式 Bulk
制造应用 Industrial, 音频, Motor Drive & Control, 通信与网络, Communications & Networking, 工业, Audio, 电机驱动与控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
