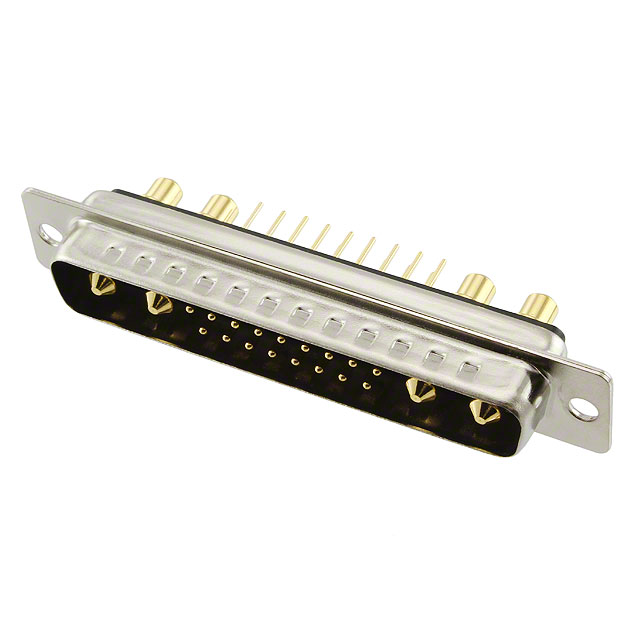

681M21WA4PL001

NORCOMP  681M21WA4PL001  连接器, 组合式D-SUB, 681M系列, DC-21WA4, 插头, 17 触点, 4, 通孔安装

The 681M series POWER-D vertical board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 12 industry standard contact arrangements are 3W3, 3W3K, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4.

.

Available in 9, 15, 25 and 37 sizes/positions

.

Available with 40A power contacts, 5A signal

.

Allows signal, high current and high voltage in one connector

.

Contacts are pre-loaded into the insulator

.

UL94V-0 Flammability
