614NHU

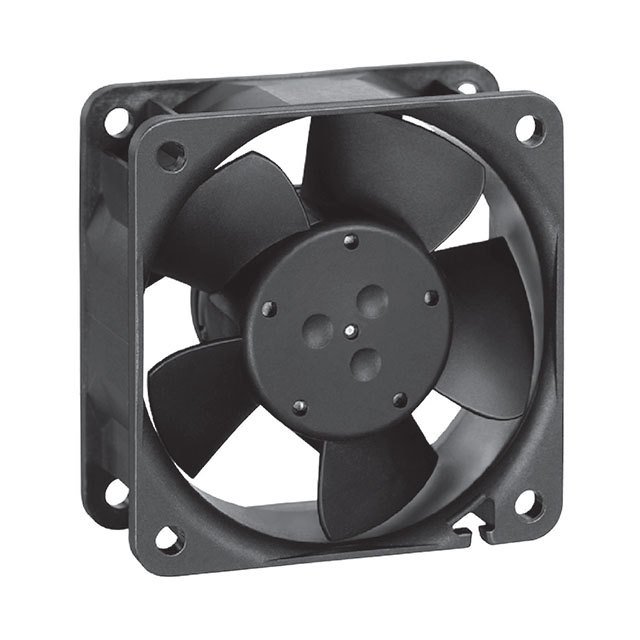

EBM PAPST  614NHU  轴流风扇, 紧凑, 标准或基础速度, 滚珠, 24 VDC, 60 mm, 25.4 mm, 25.3 cu.ft/min

The is a DC Axial Fan with motor protection against reverse polarity and locking. The outstanding features of axial fans are their low installation depth, low noise level and outstanding efficiency. Combined with GreenTech, the future-oriented EC Technology from ebm-papst, the axial fans become intelligent energy-saving wonders for an extremely wide range of applications.

.

Air exhaust over struts

.

Connection via 310mm strands 22AWG, TR 64, bared and tin-plated

.

Fibreglass-reinforced PBT composite housing

.

Fibreglass-reinforced PA composite impeller

.

Clockwise direction of rotation
