6802

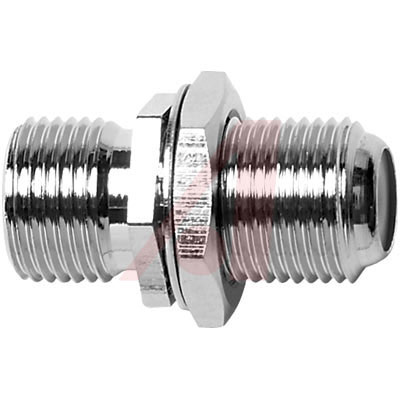

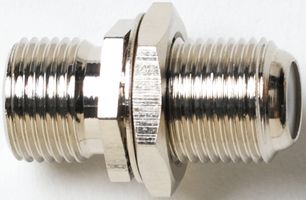

POMONA  6802  连接器, XLR

Get high-quality connections that are fast and easy to install. With the advent of HDTV, broadband cable, and sophisticated home entertainment systems, connecting today"s CATV systems calls for high-performance parts. The connectors you once installed for analog cable TV don"t stand up to today"s high bandwidth requirements. Pomona F connectors offer professional performance along with extremely easy connections. You can quickly install the new push-on style Fs without a crimp tool. You"ll save time, yet your connections will withstand 40 pounds of pull.

** Features**

* Push-On Connector Design for Easy Installation. Simply Strip the Cable and Push-On the Connector. No Crimp Tool Required

* 40 Lb. Cable Retention

* Made From High Quality Brass for Performance

* All Type "F" Connectors and Adapters Are 75 Ohm for Broadcast Applications

* Female Center Contacts Are Made from Heat Treated Beryllium Copper for Long Wear Life

** Material Specifications**

* Body: Gold-Plated Brass Push-Ons, Machined Nickel-Plated Brass Adapters Female Center Contacts: Gold-Plated Heat Treated Beryllium Copper for Long Wear Life

* Insulation Dielectric: PTFE Adapters

** General Specifications**

* Impedance: 75 Ohms

* Frequency: DC to 1.5 GHz

* VSWR*: 1.5 Max

*VSWR Applies to Connector Only.
