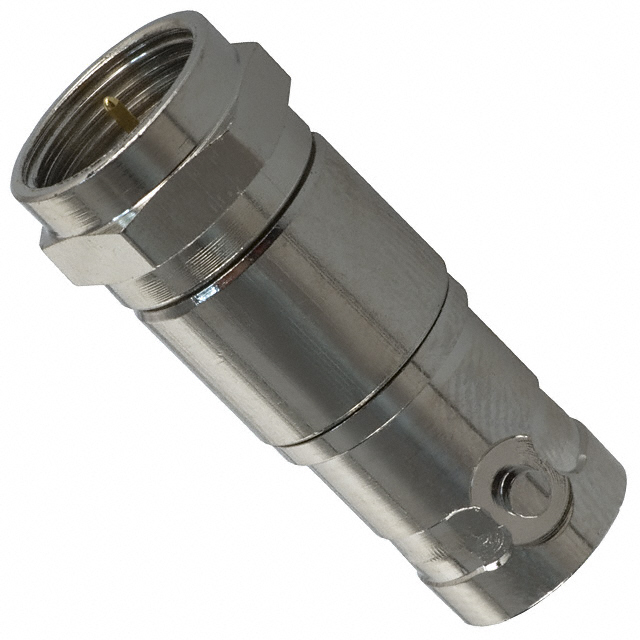

POMONA 6781 射频/同轴适配器, 同轴混合系列, 直型转接器, BNC, 插座, F, 插头
Whether you"re working at an event, in a mobile truck, or in the studio, professionals like you need the cleanest, clearest signals for broadcast and production. Pomona"s new line of 75 Ω digital video and audio broadcast connectors and cable assemblies deliver the ruggedness and reliability you need.
The transmission of today"s digital video signals is demanding higher bandwidth and greater signal purity than the analog signals of yesterday. 75 Ω connectors from Pomona help meet these demands by reducing signal loss. Pomona digital video connectors are true 75 Ω, precision-machined from high quality materials.
Pomona offers a wide selection of true 75 ohm between series adapters for transition from 75 ohm BNC to F, to RCA phono plug, or to 1⁄4" phone plug.
** BNC Shell:** Tarnish resistant nickel-plated brass; ** Center Contact. Male:** Gold-plated brass; F** emale:** Gold-plated beryllium copper; ** Dielectric:** PTFE.
** Features**
* Made from Precision Machined High Quality Brass for Superior Performance
* Center Contacts Are Plated with 20 Micro Inches of Gold for Better Conductivity
* Insulation Material Is High Density PTFE
* All Connectors and Adapters Are 75 Ohm for Broadcast Applications
* Female Center Contacts Are Made from Heat Treated Beryllium Copper for Long Wear Life
