67329-8020概述

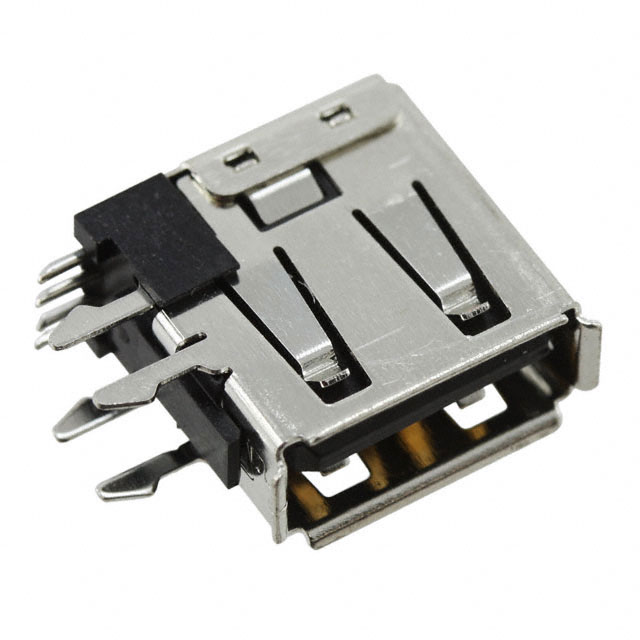

MOLEX  67329-8020  连接器, USB, USB A, USB 2.0, 插座, 4 路, 电路板安装, 直角型 新

Consumer USB Products

Industry standard USB connectors and cable assemblies provide connection for power and data exchange without the need for a host PC across a variety of industries. The Universal Serial Bus was developed in 1996 to integrate a variety of existing PC I/O ports into a single interface with hot-plugging, automatic configuration capabilities and increased bandwidth to enhance serial I/O throughput for a wide range of peripherals. Available in standard, mini and micro versions, USB products connect a variety of different peripherals to this common interface standard.

67329-8020中文资料参数规格
技术参数

触点数 4

极性 Female

触点电镀 Gold

额定电流 1.00 A

绝缘电阻 1000 MΩ

排数 4

无卤素状态 Not Low Halogen

方向 Vertical

电路数 4

针脚数 4

额定电流Max 1A/触头

工作温度Max 40 ℃

工作温度Min 0 ℃

接触电阻Max 30 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 7 mm

宽度 13.68 mm

高度 14.47 mm

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Active

包装方式 Tray

制造应用 工业, 通信与网络, 便携式器材

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

67329-8020引脚图与封装图
67329-8020引脚图
67329-8020封装图
67329-8020封装焊盘图
