656-3403-304F概述

发光二极管指示器, 面板, 12.7MM, 蓝色, 12V

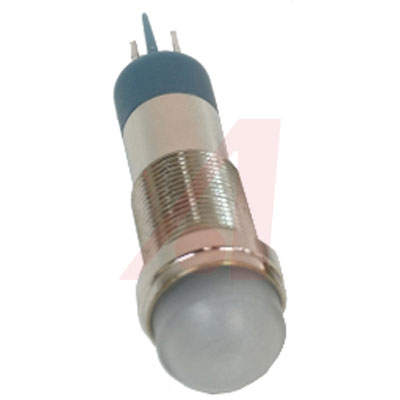

**The 656 Series 1⁄2" LED Panel Mount Indictors** incorporate both In-GaN and AllnGap technologies to offer super bright intensities in a full range of colors and voltages. This is a highly durable package, designed to withstand outdoor applications susceptible to rain, dust and sunlight.

**Applications:**

* Instrument panels

* Safety applications

* UL 508 panel Applications

* Power Generation

* Transportation – rail, bus, airline

**Features:**

* Long life - typically 100K hours

* Daylight viewable

* Tamperproof/Designed for high durability

* Available in red, yellow, green and blue

* Low profile flat viewing angle: 50

* Wide angle domed viewing angle: TBD"

656-3403-304F中文资料参数规格
技术参数

工作电压 12 VDC

正向电流 16 mA

正向电流Max 16 mA

工作温度Max 85 ℃

工作温度Min -30 ℃

电源电压 12 VDC

封装参数

引脚数 2

物理参数

颜色 Blue

其他

产品生命周期 Active

包装方式 Each

符合标准

RoHS标准

数据手册

在线购买656-3403-304F
型号: 656-3403-304F
制造商: Dialight
描述:发光二极管指示器, 面板, 12.7MM, 蓝色, 12V
