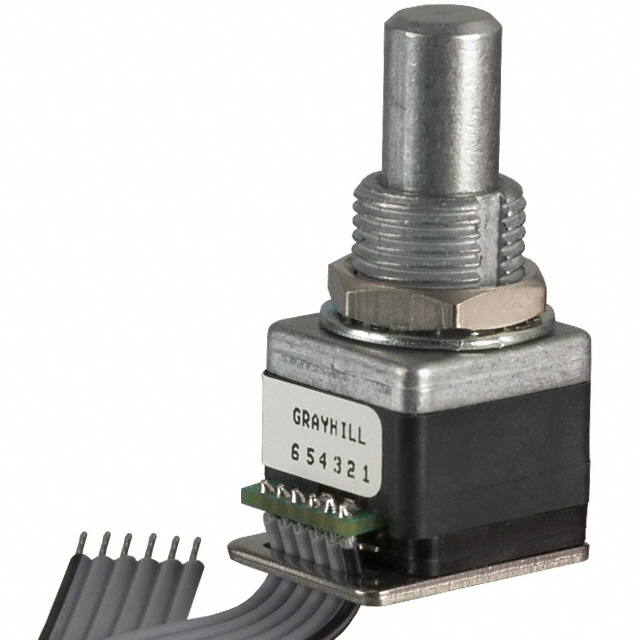

62A11-02-050S图片2
62A11-02-050S图片3
62A11-02-050S图片4
62A11-02-050S图片5
62A11-02-050S概述

Encoder 5V input 11.25° or 32Position push

Rotary Encoder Optical 32 Quadrature Incremental User Selectable


得捷:
ROTARY ENCODER OPTICAL 32PPR


贸泽:
Encoders Encoder 5V input 11.25deg or 32 Pos


艾睿:
Optical Encoder Rotary Incremental Flat 2oz.in Straight Digital Square Wave Panel Mount Cable 8CPR


Chip1Stop:
Optical Encoder Rotary Incremental Flat 2oz.in Straight Digital Square Wave Panel Mount Cable 32PPR


Verical:
Optical Encoder Rotary Incremental Flat 0.014N.m Straight Digital Square Wave Panel Mount Cable 8CPR


Newark:
# GRAYHILL  62A11-02-050S  Encoder, 5V input, 11.25&deg


MASTER:
Optical Encoder Rotary Incremental Flat 2oz.in Straight Digital Square Wave Panel Mount Cable 8CPR


Electro Sonic:
Optical Encoder Rotary Incremental Flat 2oz.in Straight Digital Square Wave Panel Mount Cable 8CPR


62A11-02-050S中文资料参数规格
技术参数

电源电压DC 5.00 V

方向 Vertical

电路数 2

通道数 2

针脚数 32

制动器数量 32

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 5 V

封装参数

安装方式 Panel

外形尺寸

长度 13.26 mm

宽度 16.26 mm

高度 30.39 mm

物理参数

工作温度 40℃ ~ 85℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 8543908880

数据手册

在线购买62A11-02-050S
型号: 62A11-02-050S
制造商: Grayhill
描述:Encoder 5V input 11.25° or 32Position push
