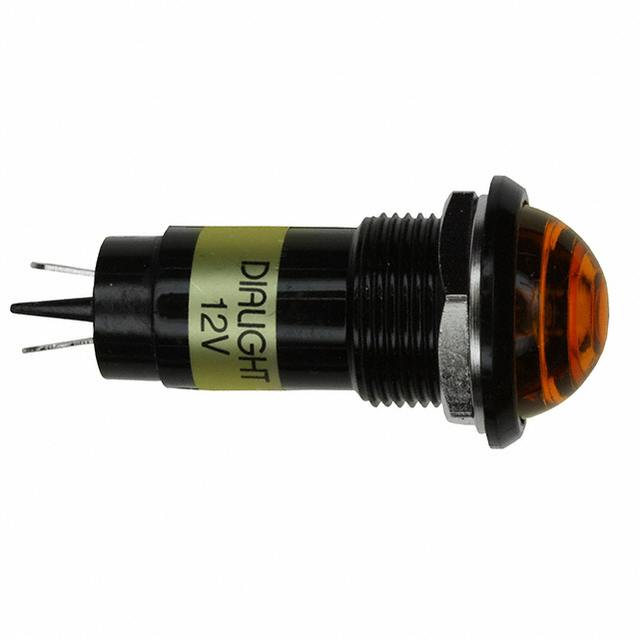

616-1332-130F图片1
616-1332-130F图片2
616-1332-130F图片3
616-1332-130F图片4
616-1332-130F图片5
616-1332-130F图片6
616-1332-130F图片7
616-1332-130F图片8
616-1332-130F概述

LED面板上的指示器 Yellow 16mm 24 VDC

**616 Series**

616 series LED panel mount indicators have a polycarbonate housing with a domed polycarbonate lens to match the emitting Color. The 616 series has a long life expectancy and low power consumption that make them suitable for a variety of applications such as main and remote power indication, status indication and instrumentation.


贸泽:
LED面板上的指示器 Yellow 16mm 24 VDC


艾睿:
LED Panel Mount Indicator Uni-Color Yellow 90mcd 2-Pin


Allied Electronics:
Indicator, Pnl-Mnt; 16 MM YELLOW LED PMI -12 VDC


Chip1Stop:
LED Uni-Color Yellow 2-Pin


Verical:
LED Uni-Color Yellow 2-Pin


Newark:
# DIALIGHT  616-1332-130F  LED Panel Mount Indicator, Yellow, 12 VDC, 16 mm, 15 mA, 90 mcd, Not Rated


MASTER:
LED Panel Mount Indicator Uni-Color Yellow 90mcd 2-Pin


Online Components:
LED Panel Mount Indicator Uni-Color Yellow 90mcd 2-Pin


Electro Sonic:
LED Panel Mount Indicator Uni-Color Yellow 90mcd 2-Pin


616-1332-130F中文资料参数规格
技术参数

额定电压DC 12.0 V

工作电压 12 VDC

正向电压 12 V

发光强度 90 mcd

透镜样式 Non-Diffused

正向电流 15 mA

正向电流Max 15 mA

工作温度Max 85 ℃

工作温度Min -25 ℃

电源电压 12 VDC

封装参数

安装方式 Panel

引脚数 2

外形尺寸

高度 48.5 mm

物理参数

颜色 Yellow

工作温度 -25℃ ~ 85℃

外壳材质 Polycarbonate

其他

产品生命周期 Not Recommended for New Design

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8536610000

数据手册
