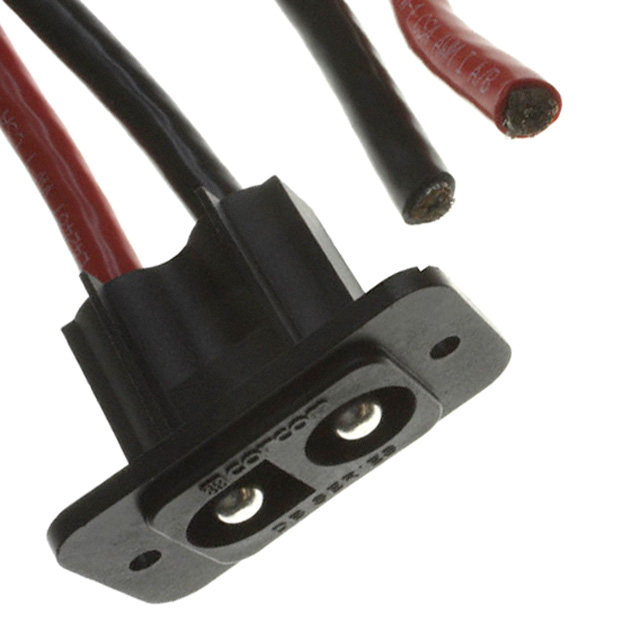

交流电源输入模块 60A 300V RECEPTICLE 6AWG CABLE= 12.0 IN
Tyco Electronics has expanded the Corcom product line with a new power inlet filter. Available in four levels of filtering and an unfiltered version, these inlets are designed to accept up to 60 Amps of current at 150 VDC UL/CSA and 120 VDC TUV in the filtered versions and 300 VAC or DC in the unfiltered version. Filtered versions include the basic clean-up DBJ style through the higher performing DB style and DBX style which provides up to 68 dB insertion loss within the 150 kHz to 30 MHz frequency range. The DBF style uses feedthrough capacitors for improved high-frequency performance. Power input terminals are Tyco Electronics #4 AWG Elcon “drawer style” contacts. The filters load sides come prewired with #6 AWG hi-flex stranded wire. The unfiltered plugs and receptacles are available with pre-terminated, hi-flex wire of various lengths.
**Features:**
* Compact Connector for High-Current DC Applications
* Reliable Performance in a Compact Assembly
* 60 ADC Current Rating
* Polarized Mating Scheme
* Easy Customer Termination of Power Source
* Plug and Receptacle Available Preterminated with Standard Wire Lengths
**Applications:**
* Telecom Equipment
* Automotive Equipment
* Data Communications
* Power Distribution Panels
