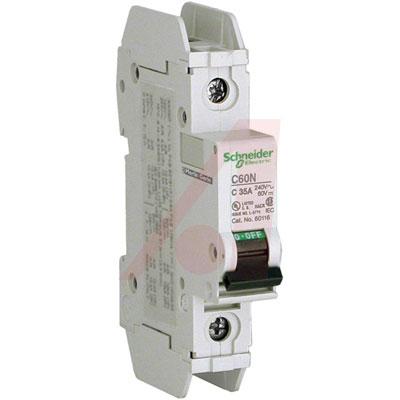

Circuit Breaker; Mag; Togl; Cur-Rtg 30A; DIN Rail; 1Pole; Vol-Rtg 120/240VAC; D
**Features:
**
* Ideal for OEMs**
**
* Small Size — L × W × H, mm: 107 × 18 Per Pole × 75**
**
* DIN Rail Mount**
**
* Two Trip Curves: C — 7-10 Times Rating; D — 10-14 Times Rating**
**
* Positive Indication of Contact Disconnect**
Applications Requiring Branch Circuit Protection:
**
* Protects Conductors Entering the OEM Equipment. This Required UL 489 Device May Be Provided Integral to the OEM Equipment or Be External as Part of the Distribution System. May Act as Branch Circuit Protection If It Protects the Conductor to the Utilization Equipment**
**
* Required to Protect Convenience Receptacle Circuits Internal or External**
**
* Required to Protect an External Load Circuit Leaving the Equipment**
**
* Required for Motors in the Equipment**
**
* Heating, Air Conditioning and Refrigeration Equipment HACR**
Specifications:
**
* Ampere Ratings: From 0.5 to 35 Amps**
**
* 10K Air 1-Pole @ 120 VAC; 2- and 3-Pole @ 240 VAC**
**
* DC Ratings C-Curve Only: 1-Pole — 60 VDC; 2-Pole — 125 VDC
