69008-1100概述
Low-profile shielded male plugsRJ45 low-profile shielded male plugs, with or without sleeve. 360° shielding ensures optimum protection against interference. Two acceptable cable diameters: 5.4 mm and 6mm. The crimp tools and the grips should be ordered separately. Voltage: | 125 V ---|--- Current | 1.5 A Contact resistance: | 20mΩ Breakdown voltage: | 1000 Vac Insulation resistance: | 500 MΩ Enclosure: | Glass-reinforced polyester UL 94-V0 Contacts: | phosphor bronze Tensile strength: | 10 kg min. Operating temperature: | -40 °C → +60 °C ### 认可CSA

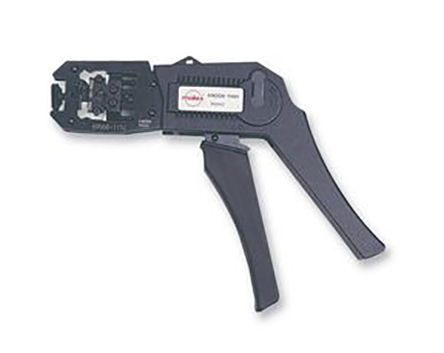

Parallel action crimp handtool with die set for Telecom plug
- .
- Terminates connector 95043 8ckt only 5.4 cable only
- .
- Designed for prototype; small batch and field repair applicators
- .
- Replacement die set: 69008-1101
- .
- Other die sets are available to fit this pistol 87031, 87281, 87522 & 90075
在线购买69008-1100
型号： 69008-1100
制造商：
Molex
莫仕
描述：Low-profile shielded male plugs RJ45 low-profile shielded male plugs, with or without sleeve. 360° shielding ensures optimum protection against interference. Two acceptable cable diameters: 5.4 mm and 6mm. The crimp tools and the grips should be ordered separately. Voltage: | 125 V ---|--- Current | 1.5 A Contact resistance: | 20mΩ Breakdown voltage: | 1000 Vac Insulation resistance: | 500 MΩ Enclosure: | Glass-reinforced polyester UL 94-V0 Contacts: | phosphor bronze Tensile strength: | 10 kg min. Operating temperature: | -40 °C → +60 °C ### 认可 CSA
